Cisco Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module, Breakout to 2 × 200G-SR4 and 8 × 50G-SR
P/N: QDD-400G-SR8
US$1300.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Built-in Inphi DSP Chip, Max. Power Consumption 10W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Compliant with QSFP-DD MSA CMIS Rev4.0, OIF 56G PAM4
Hot Pluggable QSFP-DD Form Factor
High-speed Electrical Compliant to IEEE 802.3cd
8x 50G PAM4 Retimed 400GAUI-8 Electrical Interface
QSFP-DD Port is Backward Compatible with QSFP+, QSFP28 and QSFP56 Modules
See more
Specifications
Q&A
Reviews
Resources
Cisco Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module, Breakout to 2 × 200G-SR4 and 8 × 50G-SR
The 400GBASE-SR8 module, MTP/MPO-16 connector, up to 100m over parallel OM4 multi-mode fiber. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard.
The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device. And it can Support 2× 200G-SR4 and 8× 50G-SR.
Specifications
Part Number
QDD-400G-SR8
Vendor Name
CPLIGHT
Form Factor
QSFP-DD
Max Data Rate
400Gbps
Wavelength
850nm
Max Cable Distance
70m@OM3/100m@OM4
Connector
MPO-16/APC
Media
MMF
Transmitter Type
VCSEL 850nm
Receiver Type
PIN
TX Power
-6~4dBm
Minimum Receiver Power
-7.9dBm
Power Budget
1.9dB
Receiver Overload
4dBm
Max Power Consumption
10W
Extinction Ratio
3dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation (Electrical)
8x50G-PAM4
Modulation (Optical)
8x50G-PAM4
CDR (Clock and Data Recovery)
TX & RX
Inbuilt FEC
No
Core Size
50/125µm
Packaging Technology
COB
Protocols
IEEE 802.3cd, QSFP-DD MSA, CMIS 4.0
Warranty
5 Years
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
Intel Compatible 100GBASE-CWDM4 QSFP28 100G 1310nm 2km DOM Duplex LC/UPC SMF Transceiver Module
US$760.00
800G OSFP Finned Top to 4x200G OSFP Finned Top NDR Passive Breakout DAC, 0.5m (2ft)
US$349.00
Juniper Compatible 100GBASE-SR4 QSFP28 850nm 100m MPO-12/UPC MMF Transceiver Module
US$210.00
Generic Compatible 100GBASE-CWDM4 QSFP28 100G 1310nm 2km DOM Duplex LC/UPC SMF Transceiver Module
US$760.00
Broadcom Compatible 25GBASE-SR SFP28 25G 850nm 100m Duplex LC/UPC MMF Transceiver Module
US$135.00
Intel Compatible 10GBASE-SR SFP+ 10G 850nm 300m Duplex LC/UPC MMF Transceiver Module
US$59.00
Dell Compatible 800G OSFP Finned Top OSFP 2x FR4 2km 1310nm Dual LC/UPC, Finned Top
US$11000.00
Generic Compatible 10GBASE-SR SFP+ 10G 850nm 300m Duplex LC/UPC MMF Transceiver Module
US$59.00

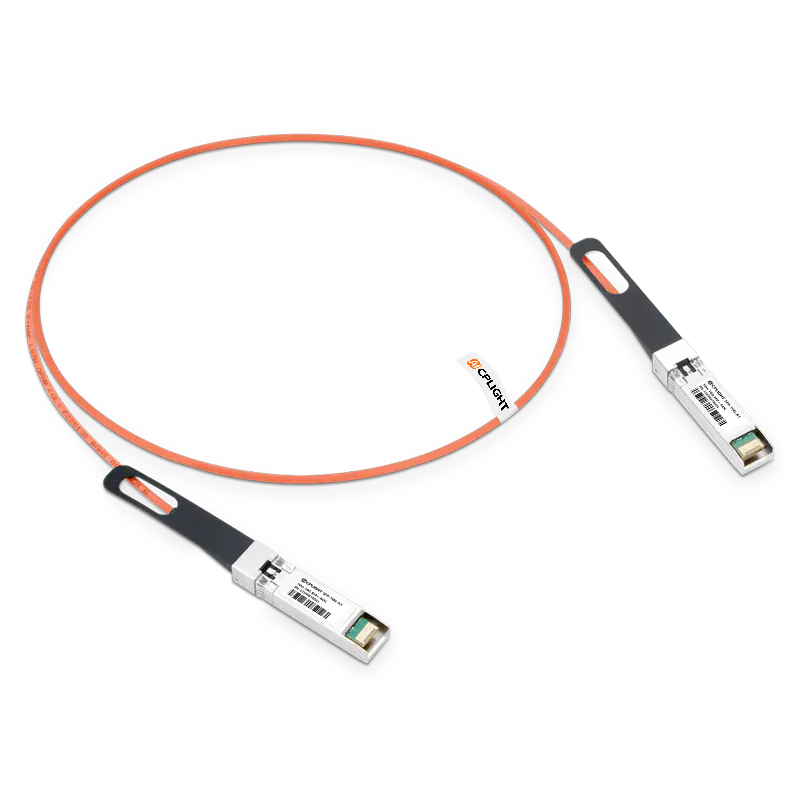

10G SFP+ AOC, 1m (3ft)
