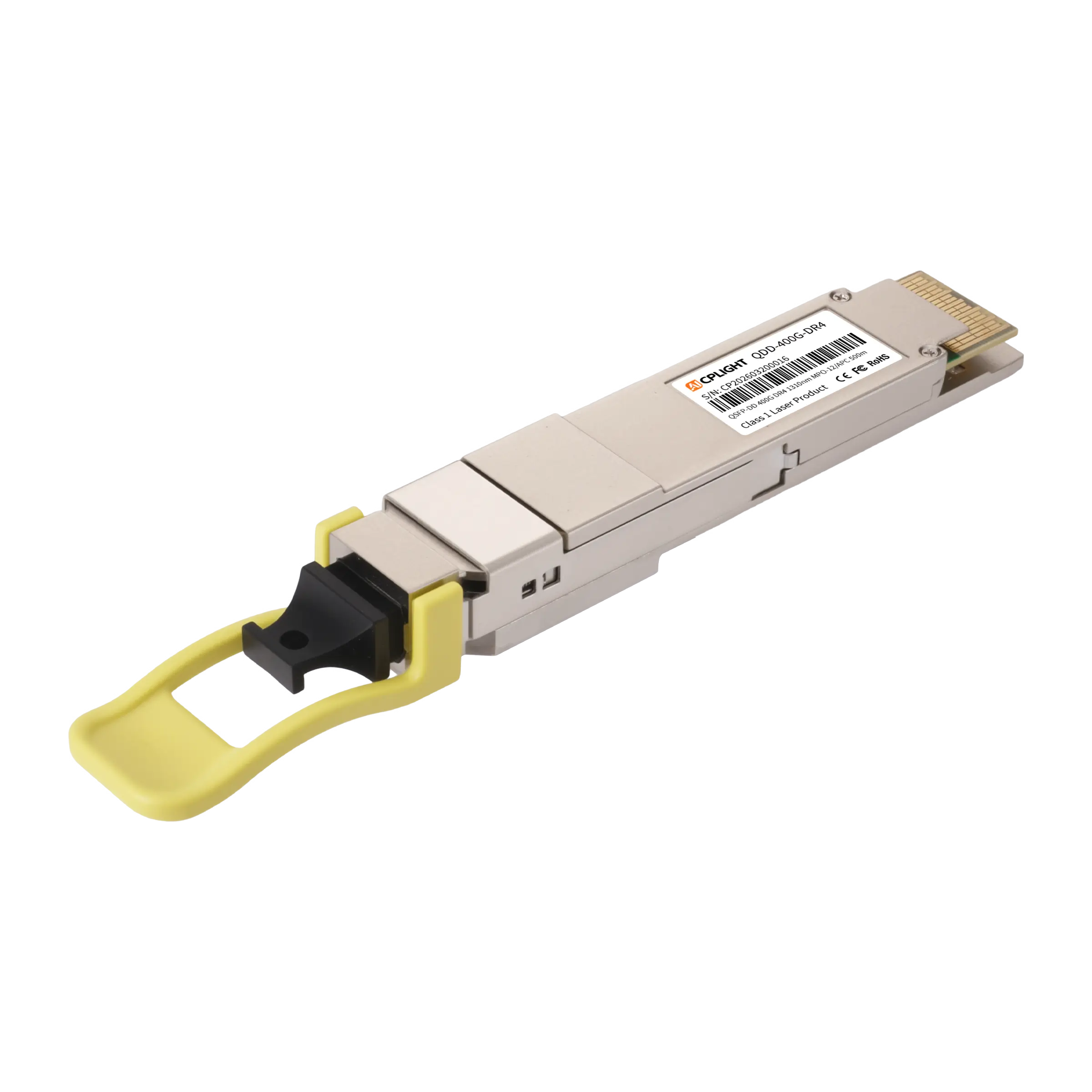

Cisco Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m DOM MPO-12/APC SMF Optical Transceiver Module, Breakout to 4 x 100G-DR
Cisco Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m DOM MPO-12/APC SMF Optical Transceiver Module, Breakout to 4 x 100G-DR
Cisco Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m DOM MPO-12/APC SMF Optical Transceiver Module, Breakout to 4 x 100G-DR
P/N: QDD-400G-DR4
US$359.00
11
Reviews
5
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1000 In Stock）

Product Highlights

Built-in Inphi Chip, Max. Power Consumption 9W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Compliant with QSFP-DD CMIS Rev5.0, QSFP-DD MSA HW Rev 5.1
Support 4x 100G Breakout to QSFP-DR-100G
Hot Pluggable QSFP-DD Form Factor
High-speed Electrical Compliant to IEEE 802.3bs
QSFP-DD Port is Backward Compatible with QSFP+, QSFP28 and QSFP56 Modules
See more
Specifications
Q&A
Reviews
Resources
Cisco Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m DOM MPO-12/APC SMF Optical Transceiver Module, Breakout to 4 x 100G-DR
The 400GBASE-DR4 module, MTP/MPO-12 connector, up to 500m over parallel single-mode fiber. It is compliant with QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards.
The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP-DR-100G. It is a cost-effective and lower power consumption solution for 400GBASE data center.
Specifications
Part Number
QDD-400G-DR4
Vendor Name
AICPLIGHT
Form Factor
QSFP-DD
Max Data Rate
425Gbps (4x106.25Gb/s)
Wavelength
1310nm
Max Cable Distance
500m
Connector
MPO-12/APC
Media
SMF
Modulation Format
PAM4
Receiver Type
PIN
TX Power
-2.9~4dBm
Minimum Receiver Power
-5.9dBm
Power Budget
3dB
Receiver Overload
4.0dBm
Max Power Consumption
9W
Extinction Ratio
3.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation (Electrical)
8x50G-PAM4
Modulation (Optical)
4x100G-PAM4
BER
2.4x10^-4
Inbuilt FEC
No
Protocols
IEEE 802.3bs, QSFP-DD CMIS Rev 5.0, QSFP-DD MSA HW Rev 5.1
Warranty
5 Years
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Questions & Answers
edit icon Ask a question
All (5) Product (2)Installation (1)Performance (2)
Q:

Are temperature variations an issue?

by V***m on 2025-07-08 14:10:45

A:

Our modules are tested for stability across wide temperature ranges.

by Helpful on 2025-07-08 14:51:52

like icon Helpful 0
comment icon Comment 0
Q:

What is the operating temperature range?

by S***m on 2025-07-08 14:05:32

A:

Most modules operate between 0°C to 70°C, with extended versions available.

by CPLIGHT on 2025-07-08 14:19:56

like icon Helpful 0
comment icon Comment 0
Q:

Can I request a test report for each batch?

by I***m on 2025-07-08 13:50:04

A:

Yes, test reports can be provided for all outgoing batches.

by CPLIGHT on 2025-07-08 14:18:13

like icon Helpful 0
comment icon Comment 0
Q:

Do the modules support FEC?

by E***m on 2025-07-08 13:20:33

A:

Yes, forward error correction is supported.

by Helpful on 2025-07-08 14:50:11

like icon Helpful 0
comment icon Comment 0
Q:

Is polarity important during installation?

by H***m on 2025-07-08 13:07:33

A:

Yes, ensure Type A/B polarity matches across the link.

by CPLIGHT on 2025-07-08 14:39:18

like icon Helpful 0
comment icon Comment 0
