Cisco Compatible 100GBASE-LR4 QSFP28 100G 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module
P/N: QSFP-100G-LR4
US$1000.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Built-in Semtech Chip, Max. Power Consumption 3.5W
Tested in Targeted Switches for Superior Performance
Adopt Reliable, Airtight, and Radiative BOX Packaging
Hot Pluggable QSFP28 MSA Compliant
Compliant with IEEE 802.3 100GBASE-LR4 standard, featuring Class 1 FDA laser safety and RoHS compliance
Interoperable with Other IEEE-compliant 100G Interfaces for Seamless Integration
Digital Optical Monitoring for Strong Diagnostics
See more
Specifications
Q&A
Reviews
Resources
Cisco Compatible 100GBASE-LR4 QSFP28 100G 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module

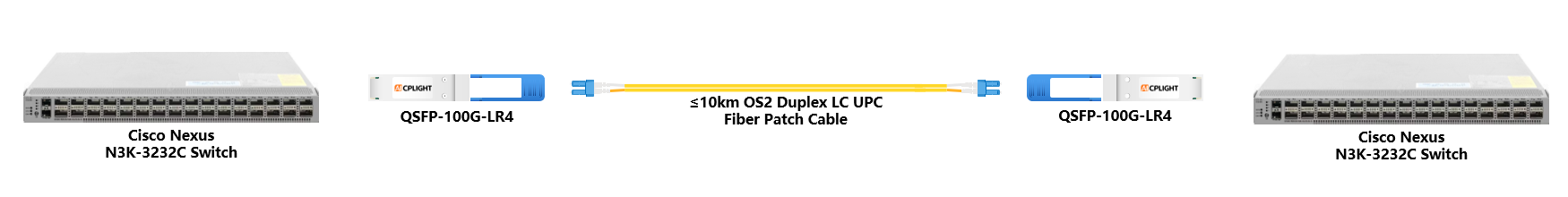

The QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. This transceiver is compliant with IEEE 802.3 100GBASE-LR4, SFF-8665 and SFF-8636 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G telecom connections, data center, high-performance computing networks, enterprise core and distribution layers, campus networks etc.
Specifications
Part Number
QSFP-100G-LR4
Vendor Name
CPLIGHT
Form Factor
QSFP28
Max. Data Rate
103.125Gbps (4x 25.78Gbps)
Wavelength
1310nm
Max. Cable Distance
10km
Connector
Duplex LC
Media
SMF
Transmitter Type
4 x LAN WDM EML
Receiver Type
PIN
TX Power
-4.3~4.5dBm
Minimum Receiver Power
-10.6dBm
Power Budget
-6.3dB
Receiver Overload
4.5dBm
Typical Power Consumption
≤3.5W
Extinction Ratio
＞4dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation Format
NRZ
Protocols
IEEE 802.3 100GBASE-LR4, QSFP28 MSA, SFF-8665, SFF-8636
Warranty
5 Years
Certification
