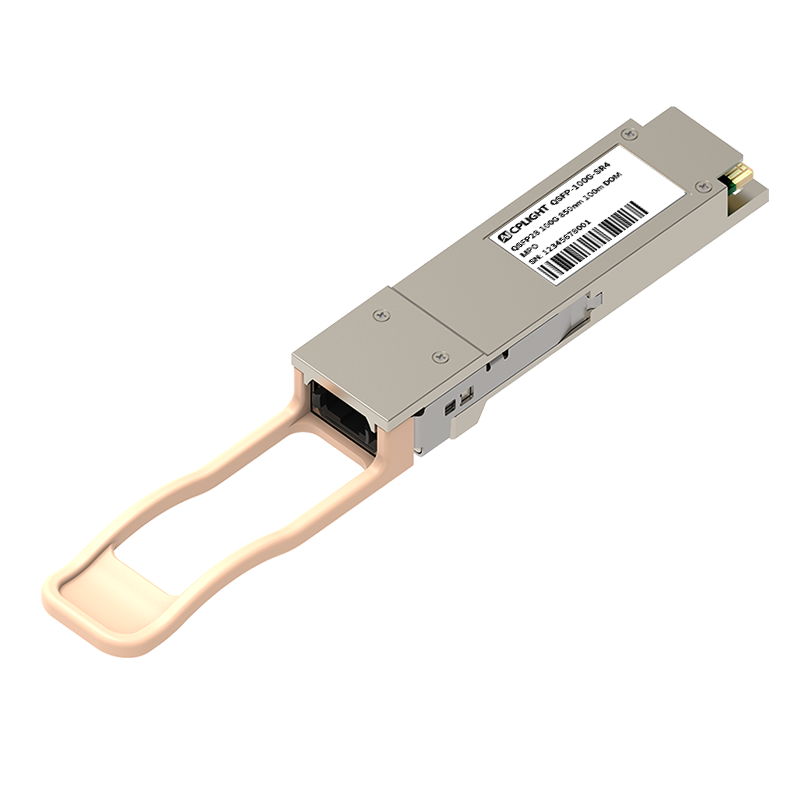

Cisco Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM MPO-12/UPC MMF Optical Transceiver Module, Breakout to 4 x 25G-SR
P/N: QSFP-100G-SR4
US$210.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Built-in Semtech Chip, and Max. Power Consumption 2.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability

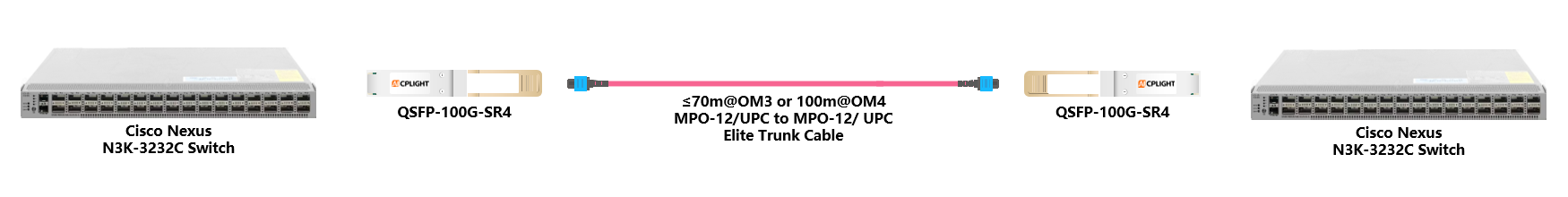

Support 100G to 4x25G Breakout Application
Hot Pluggable QSFP28 MSA Compliant, Class 1 FDA Laser Safety, and RoHS Compliant
Interoperable with Other IEEE-compliant 100G Interfaces for Seamless Integration
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
High-Speed Electrical Interface Compliant to IEEE 802.3bm
See more
Specifications
Q&A
Reviews
Resources
Cisco Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM MPO-12/UPC MMF Optical Transceiver Module, Breakout to 4 x 25G-SR
The QSFP-100G-SR4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
Specifications
Part Number
QSFP-100G-SR4
Vendor Name
CPLIGHT
Form Factor
QSFP28
Max. Data Rate
103.125Gbps (4x 25.78Gbps)
Wavelength
850nm
Max. Cable Distance
70m@OM3/100m@OM4
Connector
MTP/MPO-12
Media
MMF
Transmitter Type
VCSEL 850nm
Receiver Type
PIN
TX Power
-8.4~2.4dBm
Minimum Receiver Power
-10.3dBm
Power Budget
1.9dB
Receiver Overload
2.4dBm
Typical Power Consumption
≤2.5W
Extinction Ratio
＞3dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Inbuilt FEC
No
Protocols
IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI
Warranty
5 Years
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
Juniper Compatible 800G OSFP OSFP-800G-2xR4 2x SR4/SR8 50m 850nm Dual MPO-12/APC, Finned Top
US$6000.00
NVIDIA Compatible 10GBASE-LR SFP+ 10G 1310nm 10km Duplex LC/UPC SMF Transceiver Module
US$98.00
Cisco Compatible 10GBASE-SR SFP+ 10G 850nm 300m Duplex LC/UPC MMF Transceiver Module
US$59.00

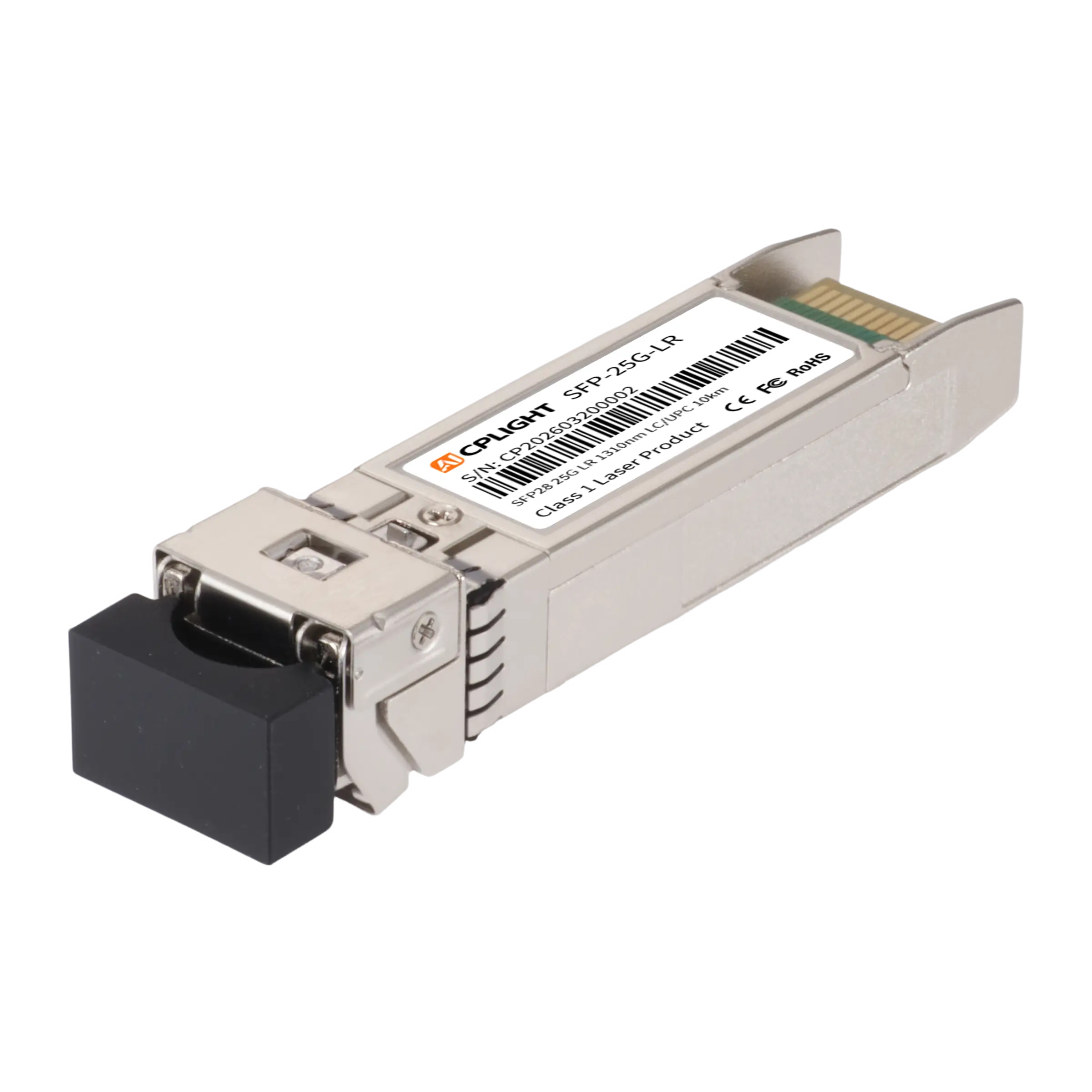

Alcatel-Lucent Compatible 25GBASE-LR SFP28 25G 1310nm 10km Duplex LC/UPC SMF Transceiver Module
US$338.00

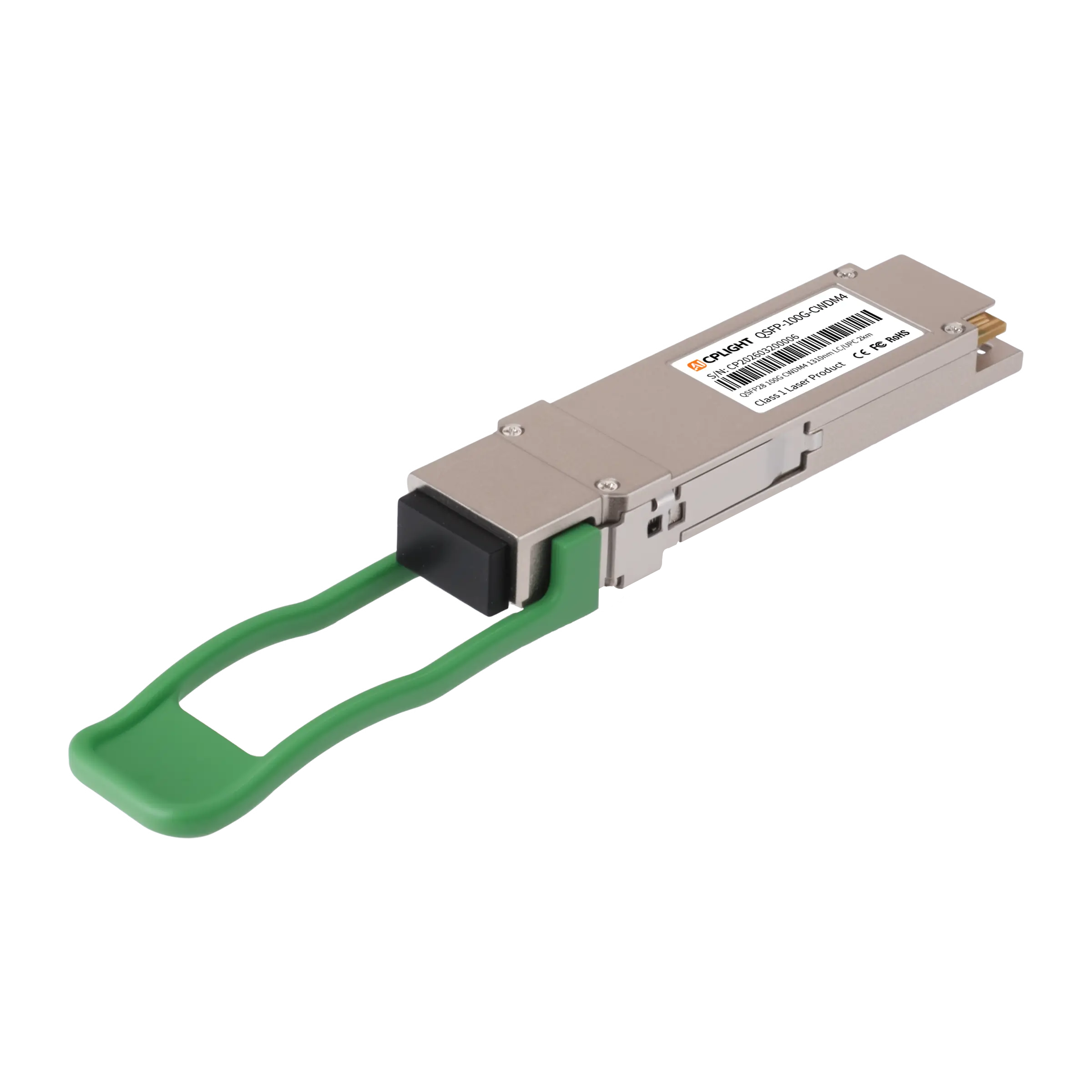

NVIDIA Compatible 100GBASE-CWDM4 QSFP28 100G 1310nm 2km DOM Duplex LC/UPC SMF Transceiver Module
