MTP® Harness, MTP®-12 APC (Female) to 6 LC UPC Duplex, 12 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Type B, Double Jacket, Yellow
P/N: AUF12MTPLCOSB2
US$186.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

MTP® Connector with Optimal 0.35dB Low IL
2.0mm Small-diameter Breakout Saves Space for High-density Cabling
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Color-Coded Connector Boots for Easy Identification
For Longer Distances in Cabinet-to-Cabinet Applications
Specifications
Q&A
Reviews
Resources
MTP® Harness, MTP®-12 APC (Female) to 6 LC UPC Duplex, 12 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Type B, Double Jacket, Yellow
The MTP® harnesses allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunks. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Specifications
Connector A
MTP® Elite Female (Pinless)
Connector B
LC Duplex
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Minimum Bend Radius
10mm
Polish Type
APC (MTP®) to UPC (LC)
Polarity
Type B
Cable Jacket
Plenum (OFNP)
Cable Structure
Double Jacket
Fiber Count
12 Fibers
Breakout Length
0.5m
Cable Outside Diameter (OD)
3.6-4.5mm
Breakout Outside Diameter (OD)
2.0mm
MTP Connector Count
1
LC Connector Count
6
MTP Connector IL
0.35dB Max
LC Connector IL
≤0.20dB
MTP Connector RL
≥65dB
LC Connector RL
≥55dB
Attenuation at 1310nm
≤0.4dB/km
Attenuation at 1550nm
≤0.3dB/km
Long-term Tensile Load
100N
Short-term Tensile Load
300N
Operating Temperature
-10 to 60°C (14 to 140°F)
Storage Temperature
-10 to +70°C (14 to 158℉)
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
MTP-12 to MTP-12 APC Jumper, Female, 12 Fibers, OS2, Type B
US$174.00
Extreme Compatible 25GBASE-SR SFP28 25G 850nm 100m Duplex LC/UPC MMF Transceiver Module
US$135.00

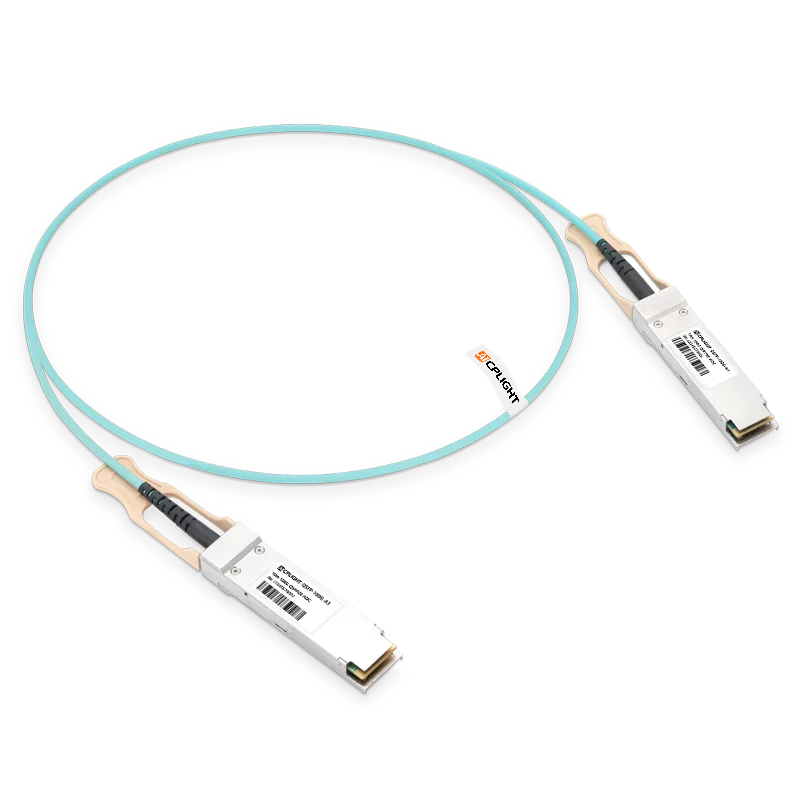

100G QSFP28 AOC, 1m (3ft)
US$199.00
Dell Compatible 800G OSFP 2x DR4/DR8 500m 1310nm Dual MPO-12/APC, Finned Top
US$6800.00
400G QSFP-DD Passive DAC, 1m (3ft)
US$119.00
Brocade Compatible 10GBASE-LR SFP+ 10G 1310nm 10km Duplex LC/UPC SMF Transceiver Module
US$98.00
Finisar Compatible 10GBASE-T Copper SFP+ 30m RJ-45 Transceiver Module
US$180.00
MTP-12 Male to MTP-12 Female UPC Jumper, OM3, Type A
US$224.00
Generic Compatible 25GBASE-LR SFP28 25G 1310nm 10km Duplex LC/UPC SMF Transceiver Module
US$338.00

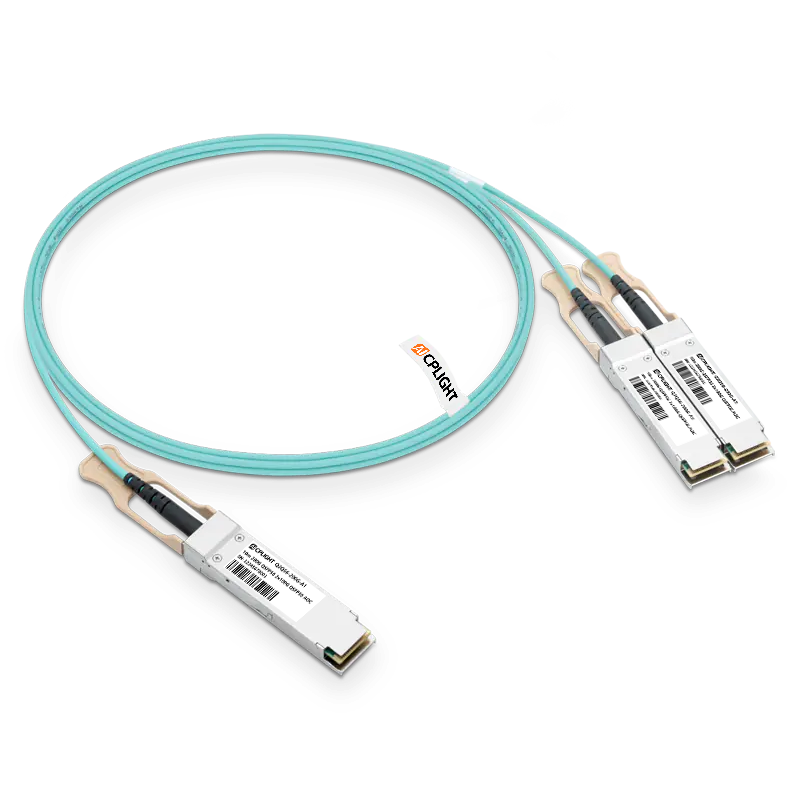

200G QSFP56 to 2x100G QSFP56 Breakout AOC, 3m (10ft), NVIDIA (InfiniBand)
