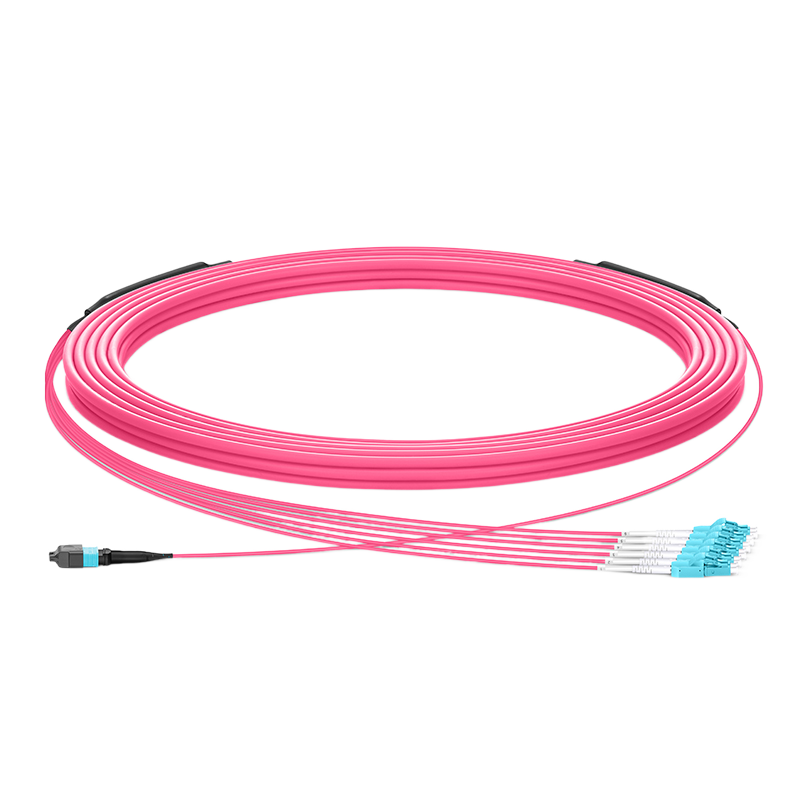

1m(3ft) MPO-8(Female UPC) to 4x LC Duplex UPC OM4 Multimode Elite Breakout Cable,8 Fibers, Type B,Plenum(OFNP) ,Magenta
1m(3ft) MPO-8(Female UPC) to 4x LC Duplex UPC OM4 Multimode Elite Breakout Cable,8 Fibers, Type B,Plenum(OFNP) ,Magenta
1m(3ft) MPO-8(Female UPC) to 4x LC Duplex UPC OM4 Multimode Elite Breakout Cable,8 Fibers, Type B,Plenum(OFNP) ,Magenta
P/N: M4-8FB-MPOU-8DLCU-1
$23.00
3
Solds
9
Reviews
5
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1 In Stock）

Product Highlights

0.35dB Low Insertion Loss MPO to 4×LC Connector
2.0mm Small-diameter Breakout Saves Space for High-density Cabling
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Color-Coded Connector Boots for Easy Identification
For Longer Distances in Cabinet-to-Cabinet Applications
Specifications
Certification
Comparison Table
Q&A
Reviews
1m(3ft) MPO-8(Female UPC) to 4x LC Duplex UPC OM4 Multimode Elite Breakout Cable,8 Fibers, Type B,Plenum(OFNP) ,Magenta
The MPO harnesses allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunks. They are typically used for patching within a cabinet. MPO cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Specifications
Connector A
MPO-8 UPC Female
Connector B
4x Duplex LC UPC
Fiber Count
8F to 4 x2F
Fiber Mode
OM4@50/125μm
Flame Rating
OFNP
Cable Outside Diametre
3.0mm
Polarity
Type B
Attenuation
2.3dB/km@850nm 0.6dB/km@1300nm
Insertion Loss
≤0.35dB@MPO ≤0.20dB@LC
Return Loss
≥20dB@MPO ≥30dBdB@LC
Operating Temperature
-10 to 70°C (14 to 158℉)
Storage Temperature
-20 to 70°C (-4 to 158℉)
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Comparison Table
1m(3ft) MPO-8 APC to 4 x LC UPC Harness, 8 Fibers, OS2, Type B
S2-8FB-MPOA-8DLCU-1
1m(3ft) MPO-8 to 4 x LC UPC Harness, 8 Fibers, OM4, Type B
M4-8FB-MPOU-8DLCU-1
1m(3ft) MPO-8 to 4 LC UPC Harness, 8 Fibers, OM3, Type B
M3-8FB-MPOU-8DLCU-1
Connector A MPO-8 APC FemaleMPO-8 UPC FemaleMPO-8 UPC Female
Connector B 4x Duplex LC UPC4x Duplex LC UPC4x Duplex LC UPC
Fiber Count 8F to 4 x2F8F to 4 x2F8F to 4 x2F
Fiber Mode OS2@9/125μmOM4@50/125μmOM3@50/125μm
Flame Rating OFNPOFNPOFNP
Cable Outside Diametre 3.0mm3.0mm3.0mm
Polarity Type BType BType B
Attenuation 0.35dB/km@1310nm 0.20dB/km@1550nm2.3dB/km@850nm 0.6dB/km@1300nm2.3dB/km@850nm 0.6dB/km@1300nm
Insertion Loss ≤0.35dB@MPO ≤0.20dB@LC≤0.35dB@MPO ≤0.20dB@LC≤0.35dB@MPO ≤0.20dB@LC
Return Loss ≥60dB@MPO ≥50dBdB@LC≥20dB@MPO ≥30dBdB@LC≥20dB@MPO ≥30dBdB@LC
Operating Temperature -10 to 70°C (14 to 158℉)-10 to 70°C (14 to 158℉)-10 to 70°C (14 to 158℉)
Storage Temperature -20 to 70°C (-4 to 158℉)-20 to 70°C (-4 to 158℉)-20 to 70°C (-4 to 158℉)
Connector A
Connector B
Fiber Count
Fiber Mode
Flame Rating
Cable Outside Diametre
Polarity
Attenuation
Insertion Loss
Return Loss
Operating Temperature
Storage Temperature
1m(3ft) MPO-8 APC to 4 x LC UPC Harness, 8 Fibers, OS2, Type B
S2-8FB-MPOA-8DLCU-1
1m(3ft) MPO-8 to 4 x LC UPC Harness, 8 Fibers, OM4, Type B
M4-8FB-MPOU-8DLCU-1
1m(3ft) MPO-8 to 4 LC UPC Harness, 8 Fibers, OM3, Type B
M3-8FB-MPOU-8DLCU-1
MPO-8 APC Female
MPO-8 UPC Female
MPO-8 UPC Female
4x Duplex LC UPC
4x Duplex LC UPC
4x Duplex LC UPC
8F to 4 x2F
8F to 4 x2F
8F to 4 x2F
OS2@9/125μm
OM4@50/125μm
OM3@50/125μm
OFNP
OFNP
OFNP
3.0mm
3.0mm
3.0mm
Type B
Type B
Type B
0.35dB/km@1310nm 0.20dB/km@1550nm
2.3dB/km@850nm 0.6dB/km@1300nm
2.3dB/km@850nm 0.6dB/km@1300nm
≤0.35dB@MPO ≤0.20dB@LC
≤0.35dB@MPO ≤0.20dB@LC
≤0.35dB@MPO ≤0.20dB@LC
≥60dB@MPO ≥50dBdB@LC
≥20dB@MPO ≥30dBdB@LC
≥20dB@MPO ≥30dBdB@LC
-10 to 70°C (14 to 158℉)
-10 to 70°C (14 to 158℉)
-10 to 70°C (14 to 158℉)
-20 to 70°C (-4 to 158℉)
-20 to 70°C (-4 to 158℉)
-20 to 70°C (-4 to 158℉)
Questions & Answers
edit icon Ask a question
All (5) Application (1)Product (1)Compatibility (1)Installation (1)Performance (1)
Q:

Do the modules support FEC?

by V***m on 2025-08-21 23:41:06

A:

Yes, forward error correction is supported.

by AICPLIGHT on 2025-08-22 09:42:50

like icon Helpful 0
comment icon Comment 0
Q:

Do you offer custom labeling or OEM branding?

by U***m on 2025-07-15 16:25:26

A:

Yes, OEM branding and custom labeling are available upon request.

by AICPLIGHT on 2025-07-15 19:13:14

like icon Helpful 0
comment icon Comment 0
Q:

What should I do if there is no signal?

by G***m on 2025-01-03 22:05:28

A:

Check polarity, cleanliness, and compatibility first.

by AICPLIGHT on 2025-01-04 08:24:29

like icon Helpful 0
comment icon Comment 0
Q:

Is this product suitable for data center deployments?

by 7***m on 2024-12-20 22:07:11

A:

Absolutely, all models are designed for high-density data center environments.

by AICPLIGHT on 2024-12-21 14:39:07

like icon Helpful 0
comment icon Comment 0
Q:

Will this work in mixed vendor networks?

by X***m on 2024-12-20 14:34:05

A:

Yes, our products are designed for interoperability.

by AICPLIGHT on 2024-12-21 07:55:18

like icon Helpful 0
comment icon Comment 0
