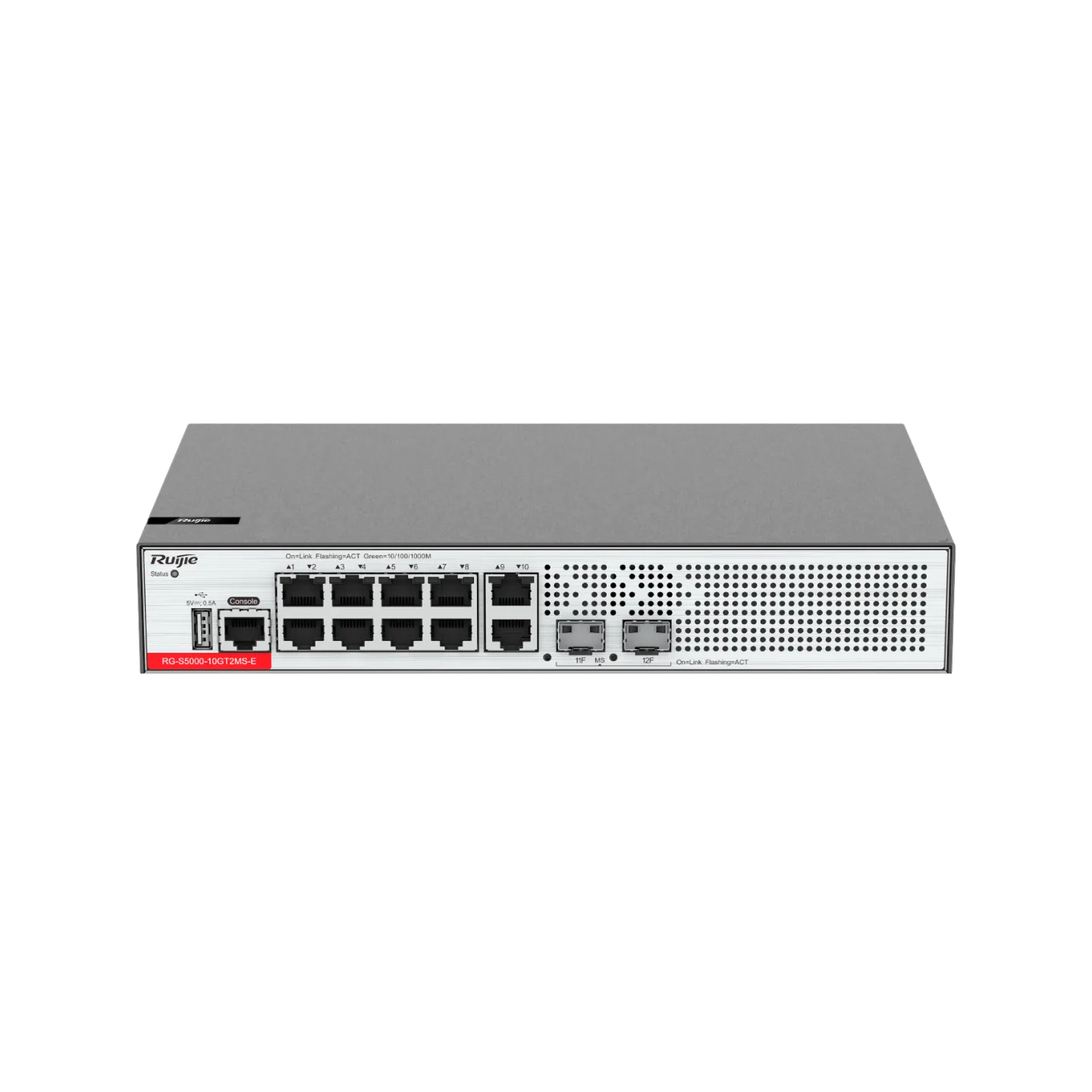

RG-S5000-10GT2MS-E 10-Port Gigabit Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports
P/N: RG-S5000-10GT2MS-E
US$1000.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

2.5GE uplinks, overcoming GE limitations, supporting diverse access types, and enabling integration into 10GE networks
Unique CPU protection policy, ensuring stable and nonstop services
RLDP for smooth network connections
10 kV surge protection for ports, providing high reliability
Streamline O&M and Management with Onsite INC and WIS Cloud-based Solutions
See more
Specifications
Q&A
Reviews
Resources
RG-S5000-10GT2MS-E 10-Port Gigabit Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports
Fit for wired, wireless, and other networks in university, hospital, government, and enterprise campus scenarios
Specifications
Port specifications
RG-S5000-10GT2MS-E
Fixed service port
10 x 10/100/1000BASE-T ports ；2 x 1GE/2.5GE SFP ports
System switching capacity
36 Gbps
System packet forwarding rate
27 Mpps
MAC address
16000
Fan
Fanless
Maximum power consumption
16 W
Unit dimensions (W x D x H)
260 mm × 170 mm × 43.6 mm (10.24 in. × 6.69 in. × 1.72 in.)
Operating temperature
0°C to 45°C (32°F to 113°F)
Warranty
3 years
Fixed management port
1 x RJ45 console port
USB
1 x USB port
CPU
Single-core CPU, with the clock speed of 1.2 GHz
Flash memory
64 MB
Memory
512 MB DDR4
Switch buffer
512 KB
MAC address
16000
ARP table size
512
ND table size
256
Number of IPv4 unicast routes
64
Number of IPv6 unicast routes
64
Number of ACEs
500
Unit dimensions (W x D x H)
260.0 mm x 170.0 mm x 43.6 mm (10.24 in. x 6.69 in. x 1.72 in.)
Shipping dimensions (W x D x H)
485 mm x 410 mm x 390 mm (19.04 in. x 16.14 in. x 15.35 in.)
Rack height
1 RU
Unit weight
2.0 kg (4.41 lbs)
Shipping weight
2.40 kg (5.25 lbs) 3.70 kg
Mounting
Mounting on a workbench/wall or in a rack (cabinet)
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
RG-S5750C-28GT4XS-H, Enterprise-Class Core/Aggregation Switch, 28 x GE Electrical Ports, Two Expansion Slots, 10GE Uplink
US$1000.00
RG-S5760C-24SFP/8GT8XS-X 24-Port Layer 3 Enterprise-Class Core or Aggregation Switch (with Eight Combo Ports), 8-Port 10GE Uplink
US$1000.00
RG-S5750C-48GT4XS-H, Enterprise-Class Core/Aggregation Switch, 48 x GE Electrical Ports, Two Expansion Slots, 10GE Uplink
US$1000.00
RG-S5000-24GT4MS-E 24-Port Gigabit Layer 2+ Managed Switch with Four 2.5GE Uplink SFP Ports
US$1000.00

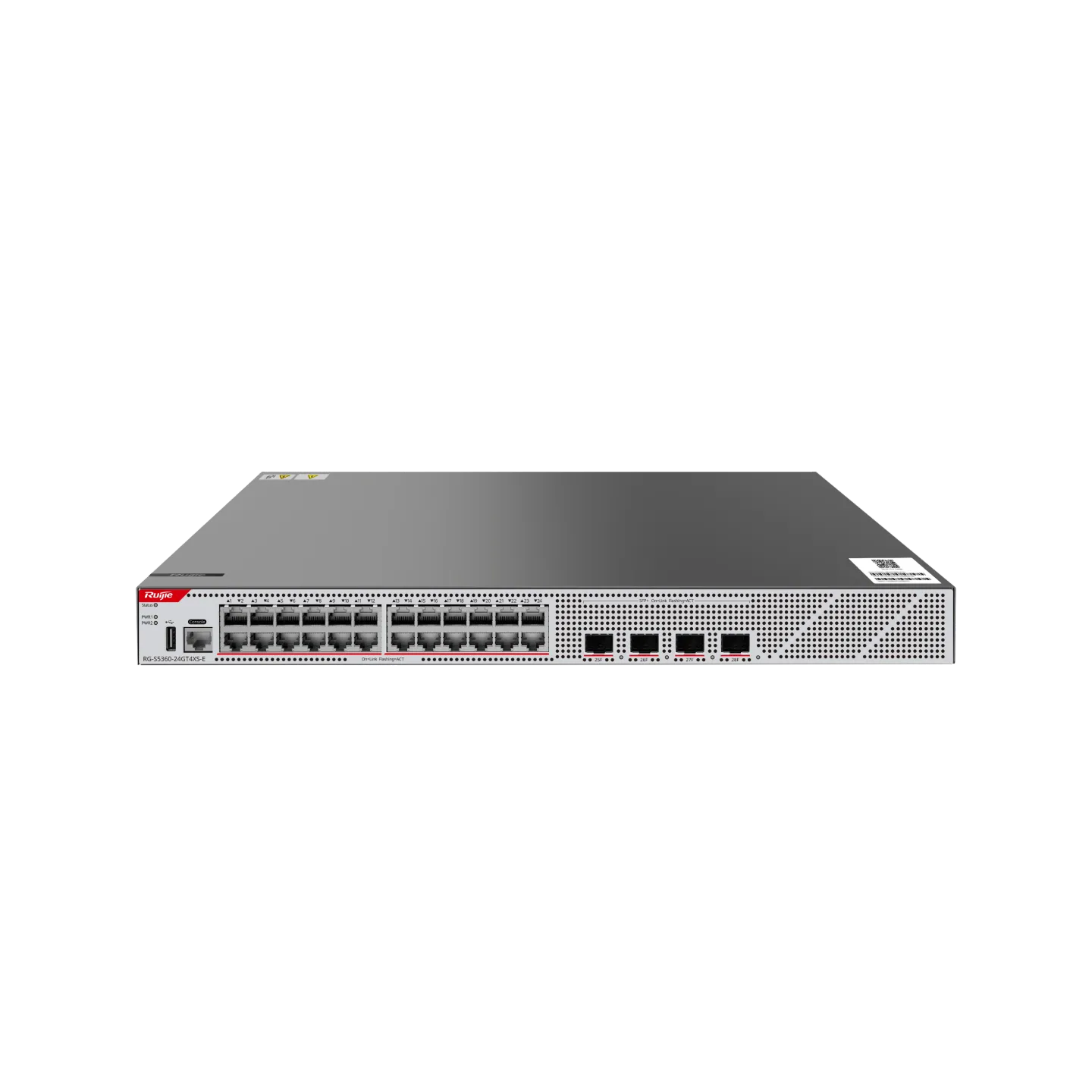

RG-S5360-24GT4XS-E 24-Port GE Layer 3 Managed Access Switch, 4-Port 10GE Uplink
