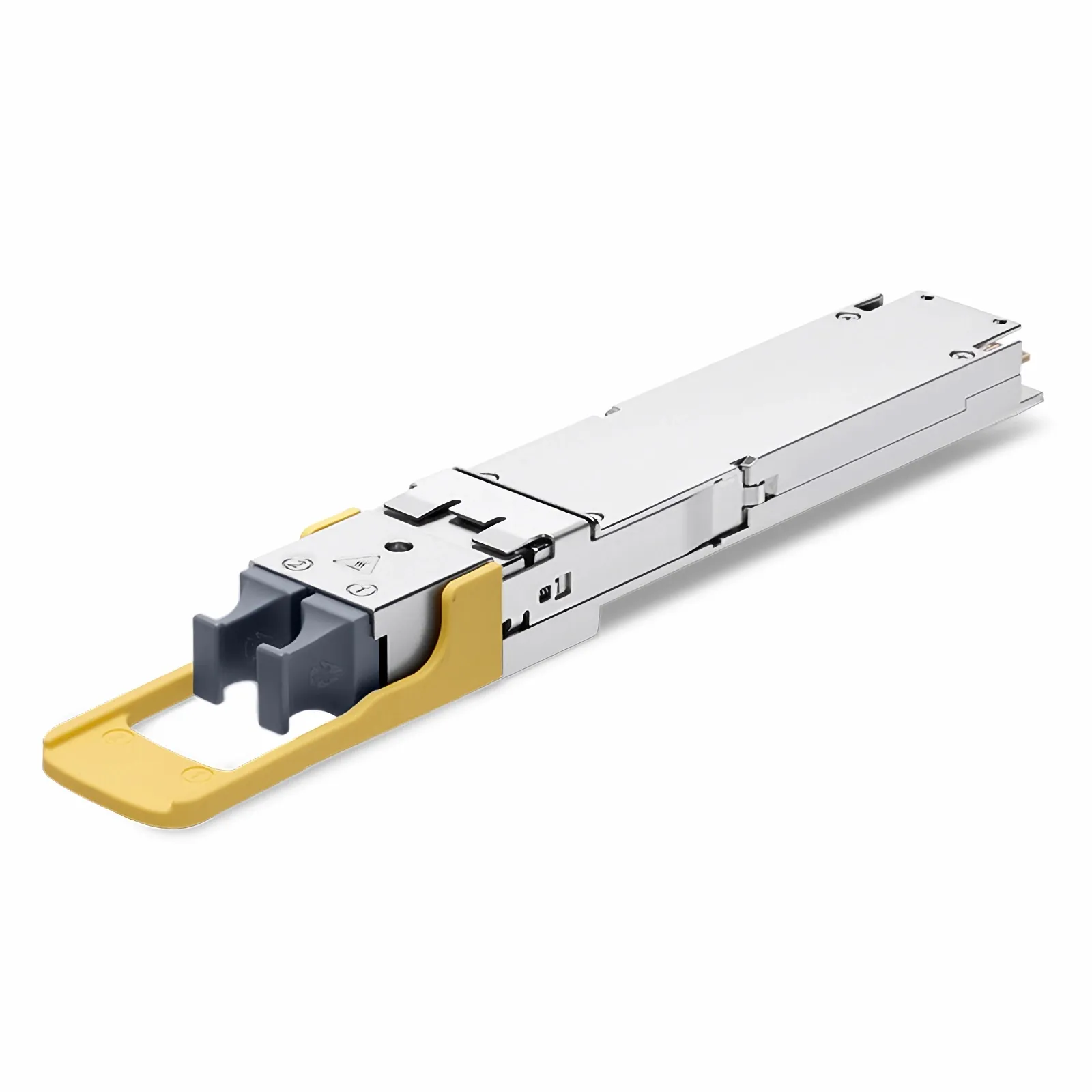

NVIDIA/Mellanox MMS4A00-XM(980-9IAH0-00XM00) Compatible 1.6T 2xDR4/DR8 OSFP224 Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Optical Transceiver Module
NVIDIA/Mellanox MMS4A00-XM(980-9IAH0-00XM00) Compatible 1.6T 2xDR4/DR8 OSFP224 Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Optical Transceiver Module
NVIDIA/Mellanox MMS4A00-XM(980-9IAH0-00XM00) Compatible 1.6T 2xDR4/DR8 OSFP224 Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Optical Transceiver Module
P/N: OSFP-1.6T-2DR4
US$1699.00
3
Solds
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1000 In Stock）

Product Highlights

Qualified for InfiniBand XDR End-to-End Systems
Built-in Broadcom 5nm DSP Chip, Max. Power Consumption 30W
Up to 1600Gbps Aggregate Throughput
8x 200G-PAM4 Electrical to Dual 4x 200G-PAM4 Optical Parallel
For High-Performance Computing (HPC) and Machine Learning (ML) Architectures
Compliant with OSFP MSA, IEEE 802.3dj D1p3, RoHS, and Class 1 Laser Safety, with DDM Support
See more
Specifications
Q&A
Reviews
Resources
NVIDIA/Mellanox MMS4A00-XM(980-9IAH0-00XM00) Compatible 1.6T 2xDR4/DR8 OSFP224 Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Optical Transceiver Module
The NVIDIA/Mellanox InfiniBand MMS4A00 Compatible OSFP Optical Transceiver is an InfiniBand 1.6T 2x 800Gb/s Twin-port OSFP, 2xDR4/DR8 single mode, parallel, 8-channel transceiver using two, 2-fiber, 4-channel MPO-12/APC optical connectors at 800Gb/s each. The parallel single mode, short reach 8-channel (2xDR4/DR8), uses 200G-PAM4 modulation and has a maximum fiber reach of 500-meters using 8 single mode fibers. It is qualified for use in InfiniBand XDR end-to-end systems. It is the ideal solution for supercomputing and HPC industries, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnectivity. The flat-top (OSFP-RHS) version is suitable for liquid-cooled switches.
Specifications
NVIDIA/Mellanox InfiniBand Compatible
MMS4A00
Vendor Name
AICPLIGHT
Form Factor
Twin-port OSFP Flat Top
Max. Data Rate
1600Gbps
Wavelength
1310nm
Max. Cable Distance
500m
Connector
Dual MTP/MPO-12 APC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-3.3~4dBm
Minimum Receiver Power
-6.3dBm
Power Budget
3dB
Receiver Overload
4dBm
Max. Power Consumption
30W
Extinction Ratio
≥3.5dB
Modulation (Electrical)
8x200G-PAM4
Modulation (Optical)
Dual 4x200G-PAM4
Packaging Technology
COB (Chip on Board) Packaging
Modulation Format
PAM4
CDR (Clock and Data Recovery)
TX & RX Built-in DSP
Inbuilt FEC
No
Protocols
OSFP MSA Rev 5.1, CMIS Rev 5.3, IEEE802.3dj D1p3, IEEE802.3dj D1p3
Warranty
5 Years
