As AI clusters continue scaling, the demand for higher bandwidth and lower latency is pushing network architectures beyond the limits of 800G. In this context, 1.6T interconnects based on OSFP224 are emerging as the foundation of next-generation AI infrastructure.
However, deploying 1.6T networking is not simply about upgrading optics. It requires a fully integrated solution that combines optical modules, cabling, and system-level design to ensure performance, stability, and scalability.
The Core of 1.6T: OSFP224 and 224G SerDes
At the heart of 1.6T networking lies the OSFP224 form factor, powered by 224G SerDes. By enabling 1.6T transmission with just eight electrical lanes, it significantly reduces complexity compared to previous generations.
This architectural efficiency allows data centers to increase port density, improve signal integrity, and manage thermal constraints more effectively—all of which are critical in large-scale AI clusters. For deeper understanding of 224G SerDes architecture, refer to our guide - 224G SerDes vs 112G: How It Enables 800G and 1.6T Optical Modules for AI Data Centers.
1.6T OSFP224 Optical Modules: DR8 (2xDR4) and FR8 (2xFR4) for Different Scenarios
In real-world deployments, different link distances require different types of optical modules. Two key variants dominate 1.6T OSFP224 deployments: DR8 and FR8.
1.6T OSFP224 DR8/2xDR4: Short-Reach High-Density Interconnect
1.6T 2xDR4/DR8 OSFP224 optical modules are designed for short-reach applications, typically up to 500 meters over single-mode fiber. They use parallel 8-lane transmission, making them ideal for:
-
Intra-data center connections
-
Spine-to-leaf switching
-
High-density AI clusters within a single facility
Because of their simpler optical design, DR8 modules generally offer lower power consumption and cost per bit, making them the preferred choice for large-scale deployments where distance is limited.

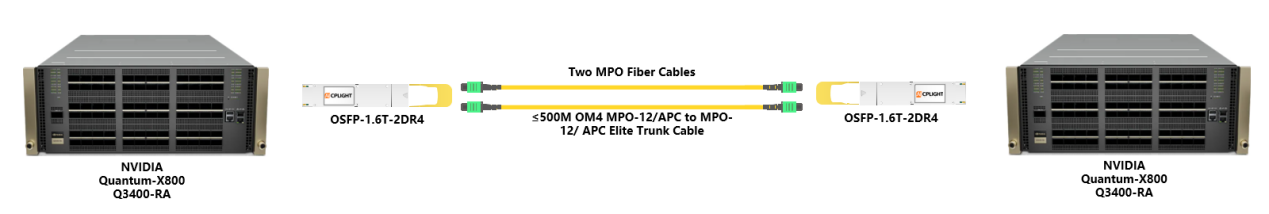

Figure 1: Two NVIDIA Quantum-X800 Q3400-RA switches linked by 1.6T 2xDR4/DR8 OSFP224 (OSFP-1.6T-2DR4) optical modules and dual MPO-12/APC fiber trunk cables for high-speed AI networking.

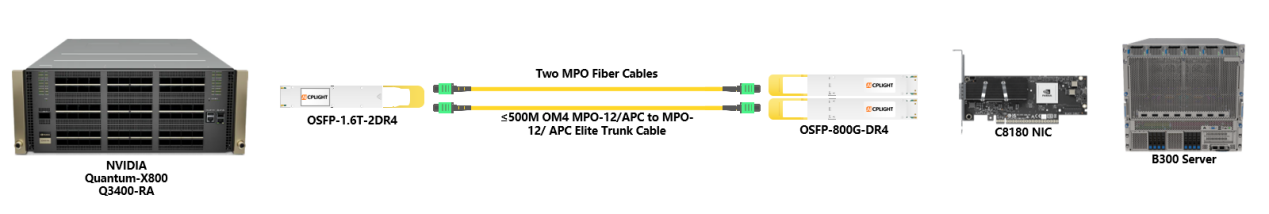

Figure 2: Architectural diagram illustrating a high-performance connectivity solution from an NVIDIA Quantum-X800 Q3400-RA switch to a B300 Server, utilizing an 1.6T 2xDR4/DR8 OSFP224 (OSFP-1.6T-2DR4) module to break out into two 800G DR4 OSFP224 (OSFP-800G-DR4) transceivers for C8180 NIC integration.
1.6T OSFP224 FR8/2xFR4: Longer Reach with WDM Efficiency
For longer distances, 1.6T 2xFR4/FR8 OSFP224 optical modules provide an efficient alternative. By leveraging wavelength division multiplexing (WDM), FR8 modules can transmit over distances up to 2 km.
This makes them suitable for:
-
Inter-building connections within a campus
-
Data center interconnect (DCI) scenarios
-
Large hyperscale environments requiring extended reach
While FR8 modules are more complex and typically consume more power than DR8, they significantly reduce fiber count and simplify cabling over longer distances.

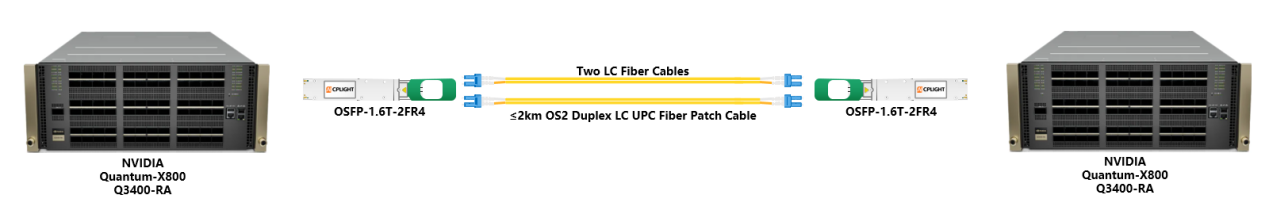

Figure 3: A high-speed link between two NVIDIA Quantum-X800 Q3400-RA switches using 1.6T 2xFR4/FR8 OSFP224 (OSFP-1.6T-2FR4) optical modules and dual OS2 Duplex LC UPC fiber patch cables for distances up to 2km.
Short-Reach Copper Connectivity: 1.6T DAC
Not all connections require optical fiber. Within racks or between adjacent racks, 1.6T DAC (Direct Attach Copper) cables play a critical role in reducing both cost and power consumption.
DAC solutions are particularly effective for ultra-short distances, typically under 2 or 3 meters, where they offer:
-
Lower latency compared to optical solutions
-
Reduced power consumption (no optical conversion)
-
Cost-effective deployment for high-density environments
In AI clusters, DAC is often used for GPU-to-switch or switch-to-switch connections within the same rack, complementing optical modules used for longer distances.

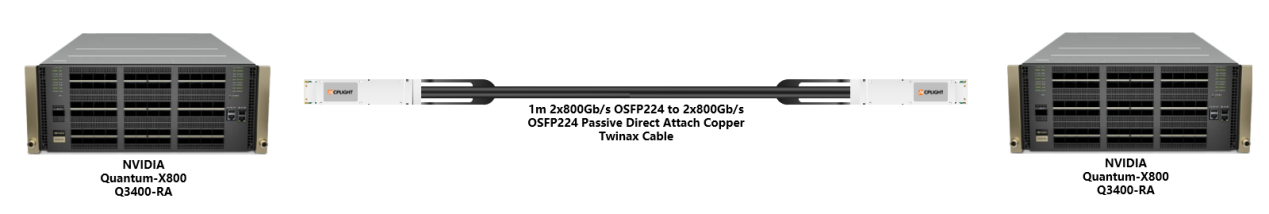

Figure 4: Two NVIDIA Quantum-X800 Q3400-RA switches linked by a 1m 2x800Gb/s OSFP224 to 2x800Gb/s OSFP224 Passive Direct Attach Copper (DAC) Twinax cable for high-density, low-latency AI networking.
Building the Complete 1.6T Interconnect Architecture
A true end-to-end 1.6T solution combines DR8, FR8, and DAC into a unified architecture.
Within a rack, 1.6T DAC cables provide efficient short-reach connectivity. Between racks in the same data hall, 1.6T 2xDR4/DR8 optical modules deliver high-density, cost-effective links. For longer distances across buildings or campuses, 1.6T 2xFR4/FR8 modules ensure reliable transmission without excessive fiber complexity.
No single interconnect technology fits all scenarios—hybrid architecture is the key to efficiency at scale. This layered approach allows data centers to optimize performance, cost, and power consumption simultaneously, rather than relying on a one-size-fits-all solution.
Power and Thermal Considerations of 1.6T Interconnect
As bandwidth doubles, managing power and heat becomes increasingly challenging. While 224G SerDes improves efficiency, system-level optimization remains essential.
DR8 modules typically offer better power efficiency for short-reach links, while FR8 modules trade higher power consumption for extended reach. DAC, on the other hand, provides the lowest power option for short distances.
Balancing these technologies within a deployment allows operators to optimize overall energy usage while maintaining performance.
Conclusion
The transition to 1.6T networking is not just about speed—it is about building a scalable, efficient, and future-ready infrastructure.
By integrating:
-
1.6T OSFP224 2xDR4/DR8 for short-reach optical links
-
1.6T OSFP224 2xFR4/FR8 for extended reach
-
1.6T DAC for ultra-short connections
data centers can create a balanced interconnect architecture that optimizes cost, performance, and power consumption.
As AI workloads continue to grow, this type of end-to-end solution will become essential for maintaining competitiveness in high-performance computing environments.
