1m(3ft) NVIDIA/Mellanox Compatible 2x800Gb/s OSFP224 Finned Top to 2x800Gb/s OSFP224 Finned Top InfiniBand XDR Passive Direct Attach Copper Twinax Cable
1m(3ft) NVIDIA/Mellanox Compatible 2x800Gb/s OSFP224 Finned Top to 2x800Gb/s OSFP224 Finned Top InfiniBand XDR Passive Direct Attach Copper Twinax Cable
1m(3ft) NVIDIA/Mellanox Compatible 2x800Gb/s OSFP224 Finned Top to 2x800Gb/s OSFP224 Finned Top InfiniBand XDR Passive Direct Attach Copper Twinax Cable
P/N: O1.6-O1.6-C1
US$496.00
5
Solds
1
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1000 In Stock）

Product Highlights

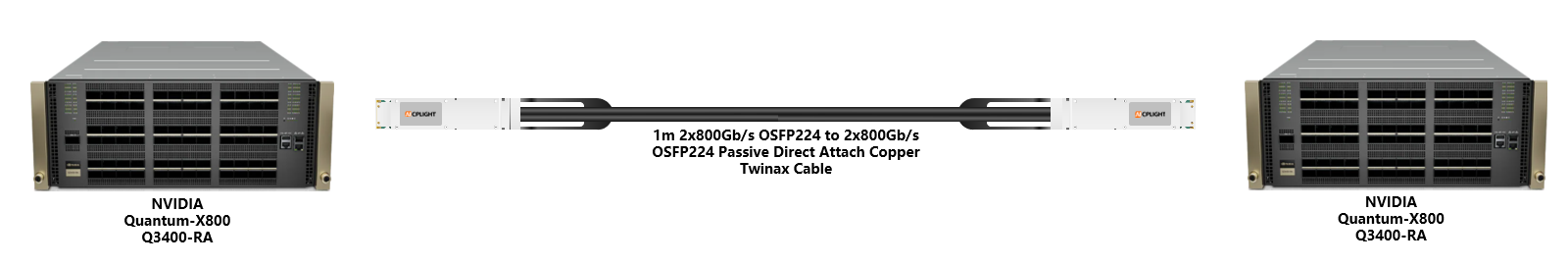

100% verified by the original, perfectly compatible with NVIDIA Quantum-X800 Q3400-RA XDR switch devices.
Maximum power consumption <0.1W.
8x 200G-PAM4 Electrical Modulation.
Ultra-low insertion loss ensures no bandwidth bottlenecks in AI clusters.
High-shielded copper structure ensures extreme crosstalk & EMI resistance.
Compliant with OSFP MSA.
See more
Specifications
Q&A
Reviews
Resources
1m(3ft) NVIDIA/Mellanox Compatible 2x800Gb/s OSFP224 Finned Top to 2x800Gb/s OSFP224 Finned Top InfiniBand XDR Passive Direct Attach Copper Twinax Cable
O1.6-O1.6-C1 is a 1600Gb/s OSFP to 1600 Gb/s OSFP Passive Copper Cable(DAC), Integrated Heat Sink to Integrated Heat Sink. DAC cables are the lowest-cost, lowest-latency, near zero power consuming, high-speed links available due to their simplicity of design and minimal components. Using the Optical Small Formfactor Plug (OSFP) and containing eight high-speed electrical copper pairs, each operating at data rates of up to 200Gb/s.
Specifications
Form Factor
OSFP224
Cable Length
1m(3ft)
Wire AWG
26 AWG
Commercial Temperature Range
0~70°C(32 to 158°F)
Jacket Material
LSZH
Power Consumption
<0.1W
Minimum Bend Radius
10xOD
Application
IB XDR,1.6T Ethernet Compliant
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Questions & Answers
edit icon Ask a question
All (1) Compatibility (1)
Q:

What is the data rate supported?

by u***m on 2025-09-24 13:51:09

A:

The cable supports data rates of 1.6T (8x200G-PAM4), making it perfect for applications that require ultra-high bandwidth.

by Helpful on 2025-09-24 15:20:26

like icon Helpful 0
comment icon Comment 0
