Huawei OSFP800-800G-2FR4-WDM1300-DLC Compatible 800GBASE 2xFR4/FR8 OSFP Finned Top PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF Ethernet Optical Transceiver Module
Huawei OSFP800-800G-2FR4-WDM1300-DLC Compatible 800GBASE 2xFR4/FR8 OSFP Finned Top PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF Ethernet Optical Transceiver Module
Huawei OSFP800-800G-2FR4-WDM1300-DLC Compatible 800GBASE 2xFR4/FR8 OSFP Finned Top PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF Ethernet Optical Transceiver Module
P/N: OSFP-800G-2FR4
$1199.00
2
Solds
5
Reviews
3
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1 In Stock）

Product Highlights

Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 16.5W
Support 2x 400G Breakout for Higher Port Density
8x106.25G PAM4 Retimed 2x400GAUI-4 Electrical Interface
High-speed Connectivity Compliant to IEEE 802.3ck and IEEE 802.3cu-2021
For Higher Bandwidth in Hyperscale Data Centers and Cloud Infrastructure
Hot Pluggable OSFP MSA Compliant
Self-developed 53G EML Laser Chip to Ensure Production
Parameter Tests for Superior Performance, Quality, and Reliability
See more
Specifications
Certification
Connectivity Solutions
Comparison Table
Q&A
Reviews
Resources
Huawei OSFP800-800G-2FR4-WDM1300-DLC Compatible 800GBASE 2xFR4/FR8 OSFP Finned Top PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF Ethernet Optical Transceiver Module
The 800GBASE 2x FR4 OSFP Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 2km over single-mode fiber (SMF) with duplex LC connectors. The 800 Gigabit Ethernet signal is carried over four wavelengths at 1271, 1291, 1311, 1331 nm. This transceiver is compliant with IEEE 802.3ck, IEEE 802.3cu, OSFP MSA. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Breakout 2x 400G FR4, Data Center, Cloud Networks.
Specifications
Form Factor
OSFP(Finned Top)
Data Rate
850Gbps
Media
SMF
Wavelength
1310nm
Connector
Dual Duplex LC UPC
Distance
2km
Transmitter Type
EML
Receiver Type
PIN
Electrical Modulation
8x 106.25 PAM4
Optical Modulation
Dual 4x 106.25 PAM4
Power Consumption
≤16.5W
Case Operating Temperature
0 to 70°C (32 to 158°F)
Protocol
800 Gigabit Ethernet 800G RoCE 2x 400G Infiniband NDR
Application
Switch to Switch Other Optical Links
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Connectivity Solutions

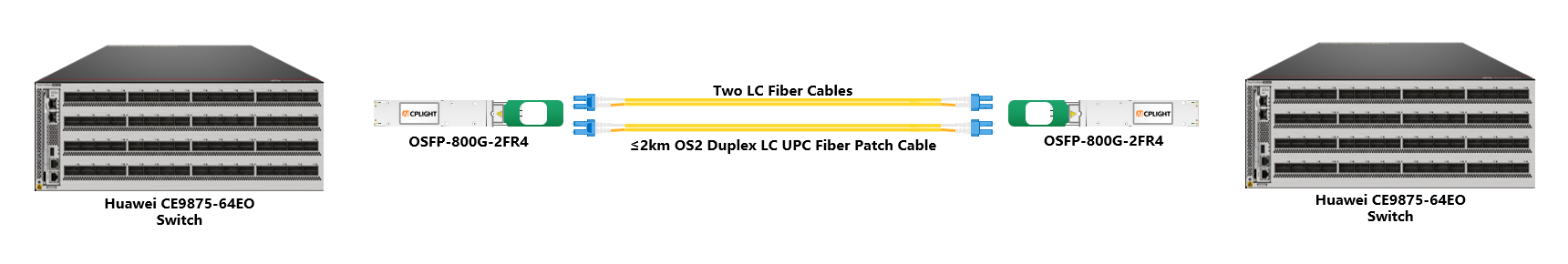

Huawei Switch links：800G OSFP to 800G OSFP
All
Huawei Switch links：800G OSFP to 800G OSFP
Comparison Table
Cisco Compatible 800G OSFP-800G-2x SR4/SR8 50m 850nm Dual MPO-12/APC, Finned Top
OSFP-800G-2SR4
Cisco Compatible 800G OSFP MMS4X50-NM 2x FR4 2km 1310nm Dual Duplex LC/UPC, Finned Top
OSFP-800G-2FR4
Cisco Compatible 800G OSFP 2x DR4/DR8 500m 1310nm Dual MPO-12/APC, Finned Top
OSFP-800G-2DR4
800G OSFP224 Flat Top MMS4A20 DR4 500m 1310nm MPO-12/APC XDR, NVIDIA(IB)
OSFP-800G-DR4
Form Factor OSFP(Finned Top)OSFP(Finned Top)OSFP(Finned Top)OSFP224(Flat Top)
Data Rate 850Gbps850Gbps-850Gbps
Media MMFSMFSMFSMF
Wavelength 850nm1310nm1310nm1310nm
Connector Dual MTP/MPO-12 APCDual Duplex LC UPCDual MTP/MPO-12 APCMTP/MPO-12 APC
Distance 30m@OM3 50m@OM42km500m500m
Transmitter Type VCSELEMLEMLEML
Receiver Type PINPINPINPIN
Electrical Modulation 8x 106.25 PAM48x 106.25 PAM48x 106.25 PAM44x 212.5G PAM4
Optical Modulation Dual 4x 106.25 PAM4Dual 4x 106.25 PAM4Dual 4x 106.25 PAM44x 212.5G PAM4
Power Consumption ≤16.0W≤16.5W≤16.5W≤15.0W
Case Operating Temperature 0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)
Protocol 800 Gigabit Ethernet 800G RoCE 2x 400G Infiniband NDR 4x 200G Infiniband NDR200800 Gigabit Ethernet 800G RoCE 2x 400G Infiniband NDR800 Gigabit Ethernet 800G RoCE 2x 400G Infiniband NDR 4x 200G Infiniband NDR200800 Gigabit Ethernet 800G RoCE 800G Infiniband XDR
Application Switch to Switch Switch to NIC Other Optical LinksSwitch to Switch Other Optical LinksSwitch to Switch Switch to NIC Other Optical LinksNIC to Switch NIC to NIC Other Optical Links
850Gbps --850Gbps-
Form Factor
Data Rate
Media
Wavelength
Connector
Distance
Transmitter Type
Receiver Type
Electrical Modulation
Optical Modulation
Power Consumption
Case Operating Temperature
Protocol
Application
850Gbps
Cisco Compatible 800G OSFP-800G-2x SR4/SR8 50m 850nm Dual MPO-12/APC, Finned Top
OSFP-800G-2SR4
Cisco Compatible 800G OSFP MMS4X50-NM 2x FR4 2km 1310nm Dual Duplex LC/UPC, Finned Top
OSFP-800G-2FR4
Cisco Compatible 800G OSFP 2x DR4/DR8 500m 1310nm Dual MPO-12/APC, Finned Top
OSFP-800G-2DR4
800G OSFP224 Flat Top MMS4A20 DR4 500m 1310nm MPO-12/APC XDR, NVIDIA(IB)
OSFP-800G-DR4
OSFP(Finned Top)
OSFP(Finned Top)
OSFP(Finned Top)
OSFP224(Flat Top)
850Gbps
850Gbps
-
850Gbps
MMF
SMF
SMF
SMF
850nm
1310nm
1310nm
1310nm
Dual MTP/MPO-12 APC
Dual Duplex LC UPC
Dual MTP/MPO-12 APC
MTP/MPO-12 APC
30m@OM3 50m@OM4
2km
500m
500m
VCSEL
EML
EML
EML
PIN
PIN
PIN
PIN
8x 106.25 PAM4
8x 106.25 PAM4
8x 106.25 PAM4
4x 212.5G PAM4
Dual 4x 106.25 PAM4
Dual 4x 106.25 PAM4
Dual 4x 106.25 PAM4
4x 212.5G PAM4
≤16.0W
≤16.5W
≤16.5W
≤15.0W
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
800 Gigabit Ethernet 800G RoCE 2x 400G Infiniband NDR 4x 200G Infiniband NDR200
800 Gigabit Ethernet 800G RoCE 2x 400G Infiniband NDR
800 Gigabit Ethernet 800G RoCE 2x 400G Infiniband NDR 4x 200G Infiniband NDR200
800 Gigabit Ethernet 800G RoCE 800G Infiniband XDR
Switch to Switch Switch to NIC Other Optical Links
Switch to Switch Other Optical Links
Switch to Switch Switch to NIC Other Optical Links
NIC to Switch NIC to NIC Other Optical Links
-
-
850Gbps
-
Questions & Answers
edit icon Ask a question
All (3) Product (1)Compatibility (1)Performance (1)
Q:

What is the average power consumption of this transceiver?

by 9***m on 2025-09-19 12:57:06

A:

The average power consumption varies by model, but it typically ranges between 3W to 12W.

by AICPLIGHT on 2025-09-19 21:18:42

like icon Helpful 0
comment icon Comment 0
Q:

Do the modules support FEC?

by j***m on 2025-08-13 07:28:28

A:

Yes, forward error correction is supported.

by AICPLIGHT on 2025-08-13 13:57:26

like icon Helpful 0
comment icon Comment 0
Q:

Are MSA standards followed?

by T***m on 2025-05-23 18:06:12

A:

Yes, all modules conform to the appropriate MSA standards.

by AICPLIGHT on 2025-05-23 22:14:58

like icon Helpful 0
comment icon Comment 0
Customer Reviews
edit icon Write a review
All (5) Performance (1)Compatibility (1)Ease of Use (1)Customer Support (2)
8
8***m
2025-09-16 11:51:32
Confirmed Purchase
5.0

The latch design makes removal and re-insertion quick even in tight spaces.

link icon Helpful 0
comment icon Comment 0
K
K***m
2025-08-03 11:15:01
Confirmed Purchase
5.0

Replacement and return policy was transparent and reassuring for first-time buyer

link icon Helpful 0
comment icon Comment 0
J
J***m
2025-08-02 02:37:10
Confirmed Purchase
5.0

Technical support provided clear guidance on 800G-to-2x400G breakouts for our aggregation layer.

link icon Helpful 0
comment icon Comment 0
R
R***m
2025-07-07 03:44:08
Confirmed Purchase
5.0

These Ethernet modules run flawlessly under sustained 800G load, with consistent throughput and thermal stability.

link icon Helpful 0
comment icon Comment 0
o
o***m
2025-05-05 18:23:23
Confirmed Purchase
5.0

Supports both 400ZR and non-coherent modes depending on your switch firmware.
