Juniper Compatible 800GBASE 2 x SR4/SR8 OSFP Finned Top PAM4 850nm 50m DOM Dual MPO-12/APC MMF Optical Transceiver Module
Juniper Compatible 800GBASE 2 x SR4/SR8 OSFP Finned Top PAM4 850nm 50m DOM Dual MPO-12/APC MMF Optical Transceiver Module
Juniper Compatible 800GBASE 2 x SR4/SR8 OSFP Finned Top PAM4 850nm 50m DOM Dual MPO-12/APC MMF Optical Transceiver Module
P/N: OSFP-800G-2xSR4
US$459.00
8
Reviews
5
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1000 In Stock）

Product Highlights

Built-in Marvell 6nm DSP Chip, Max. Power Consumption 16W
Parameter Tests for Superior Performance, Quality, and Reliability
High-speed Connectivity Compliant to IEEE 802.3ck
Hot Pluggable OSFP MSA Compliant
Support 2x 400G or 4x 200G Breakout for Higher Port Density
8x106.25G PAM4 Retimed 8x100GAUI-8 C2M Electrical Interface
For Higher Bandwidth in Hyperscale Data Centers and Cloud Infrastructure
Class 1 Laser Safety and RoHS Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
See more
Specifications
Q&A
Reviews
Resources
Juniper Compatible 800GBASE 2 x SR4/SR8 OSFP Finned Top PAM4 850nm 50m DOM Dual MPO-12/APC MMF Optical Transceiver Module

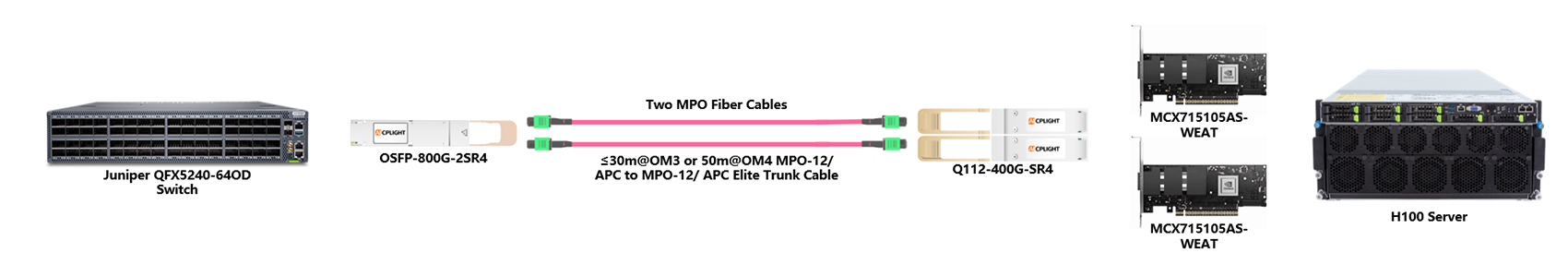

The 800GBASE-SR8 OSFP Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 50m over OM4 multimode fiber (MMF) using a wavelength of 850nm via dual MTP/MPO-12 connectors. This transceiver is compliant with IEEE P802.3ck, OSFP MSA. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Data Center and Breakout 2x 400G SR4 application.
Specifications
Part Number
OSFP-800G-2xSR4
Vendor Name
AICPLIGHT
Form Factor
Twin-port OSFP Finned Top
Max Data Rate
850Gbps (8x 106.25Gbps)
Wavelength
850nm
Max Cable Distance
30m@OM3/50m@OM4
Connector
Dual MTP/MPO-12 APC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PD
TX Power
-4.6~4dBm
Minimum Receiver Power
-6.4dBm
Power Budget
1.8dB
Receiver Overload
4dBm
Max Power Consumption
16W
Extinction Ratio
＞2.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation (Electrical)
8x100G-PAM4
Modulation (Optical)
Dual 4x100G-PAM4
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Inbuilt FEC
Yes
Protocols
OSFP MSA 5.0 CMIS 5.1
Warranty
5 Years
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Questions & Answers
edit icon Ask a question
All (5) Application (1)Product (1)Compatibility (1)Installation (1)Performance (1)
Q:

Do the modules support FEC?

by F***m on 2025-07-08 17:04:05

A:

Yes, forward error correction is supported.

by Helpful on 2025-07-08 17:10:44

like icon Helpful 0
comment icon Comment 0
Q:

Do I need to configure anything before installation?

by h***m on 2025-07-08 16:44:40

A:

No major configuration is required; most modules are plug-and-play.

by CPLIGHT on 2025-07-08 16:50:56

like icon Helpful 0
comment icon Comment 0
Q:

How should cables be routed in a high-density rack?

by A***m on 2025-07-08 16:39:38

A:

Use cable managers to maintain airflow and prevent bending.

by Helpful on 2025-07-08 17:06:20

like icon Helpful 0
comment icon Comment 0
Q:

Is this product designed for enterprise LANs?

by n***m on 2025-07-08 15:18:08

A:

Yes, lower speed modules are ideal for LAN and campus networks.

by Helpful on 2025-07-08 16:58:06

like icon Helpful 0
comment icon Comment 0
Q:

What is the average power consumption of this transceiver?

by j***m on 2025-07-08 14:58:09

A:

The average power consumption varies by model, but it typically ranges between 3W to 12W.

by CPLIGHT on 2025-07-08 16:38:10

like icon Helpful 0
comment icon Comment 0
Customer Reviews
edit icon Write a review
All (8) Performance (2)Compatibility (2)Ease of Use (2)Customer Support (2)
V
V***m
2025-06-30 06:03:42
Confirmed Purchase
5.0

These Ethernet modules run flawlessly under sustained 800G load, with consistent throughput and thermal stability.

link icon Helpful 0
comment icon Comment 0
s
s***m
2025-06-28 10:16:56
Confirmed Purchase
5.0

Recognized immediately by our monitoring system—no configuration needed.

link icon Helpful 0
comment icon Comment 0
j
j***m
2025-06-05 01:30:43
Confirmed Purchase
5.0

Exceptional throughput in high-density Ethernet fabrics. No packet loss or jitter in our production environment.

link icon Helpful 0
comment icon Comment 0
1
1***m
2025-06-01 22:22:04
Confirmed Purchase
5.0

Setup instructions were minimal and effective, saving time in every deployment.

link icon Helpful 0
comment icon Comment 0
e
e***m
2025-05-31 08:23:54
Confirmed Purchase
5.0

Technical support provided clear guidance on 800G-to-2x400G breakouts for our aggregation layer.

link icon Helpful 0
comment icon Comment 0
a
a***m
2025-05-24 14:15:29
Confirmed Purchase
5.0

Supports both 400ZR and non-coherent modes depending on your switch firmware.

link icon Helpful 0
comment icon Comment 0
y
y***m
2025-05-23 19:20:14
Confirmed Purchase
5.0

The latch design makes removal and re-insertion quick even in tight spaces.

link icon Helpful 0
comment icon Comment 0
w
w***m
2025-04-25 09:25:24
Confirmed Purchase
5.0

Replacement and return policy was transparent and reassuring for first-time buyer

link icon Helpful 0
comment icon Comment 0
