Cisco QSFP-200G-SR4-S Compatible 200GBASE-SR4 QSFP56 850nm 100m DOM MPO-12/UPC MMF Ethernet Optical Transceiver Module
Cisco QSFP-200G-SR4-S Compatible 200GBASE-SR4 QSFP56 850nm 100m DOM MPO-12/UPC MMF Ethernet Optical Transceiver Module
Cisco QSFP-200G-SR4-S Compatible 200GBASE-SR4 QSFP56 850nm 100m DOM MPO-12/UPC MMF Ethernet Optical Transceiver Module
P/N: Q56-200G-SR4
US$189.00
4
Solds
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1000 In Stock）

Product Highlights

Built-in Marvell Chip, Max. Power Consumption 5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable QSFP56 Form Factor
I2C management interface Based on MSA SFF-8636
4x50G PAM4 Retimed 200GAUI-4 Electrical Interface
High-speed Electrical Compliant to IEEE 802.3bs
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 FDA Laser Safety
See more
Specifications
Q&A
Reviews
Resources
Cisco QSFP-200G-SR4-S Compatible 200GBASE-SR4 QSFP56 850nm 100m DOM MPO-12/UPC MMF Ethernet Optical Transceiver Module
The Mellanox MMA1T00-VS Compatible QSFP56 Optical Transceiver Module is designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters.
The transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, SFF-8636 & SFF-8665 standards. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.
Specifications
Part Number
QSFP-200G-SR4-S
Vendor Name
AICPLIGHT
Form Factor
QSFP56
Max Data Rate
200Gbps
Wavelength
850nm
Max Cable Distance
70m@OM3/100m@OM4
Connector
MPO-12/UPC
Media
MMF
Transmitter Type
VCSEL 850nm
Receiver Type
PIN
TX Power
-6.5~4dBm
Minimum Receiver Power
-6.5dBm
Power Budget
3.5dB
Receiver Overload
5dBm
Max Power Consumption
5W
Extinction Ratio
＞3dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation (Electrical)
4x50G-PAM4
Modulation (Optical)
4x50G-PAM4
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Inbuilt FEC
No
Protocols
IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636
Application

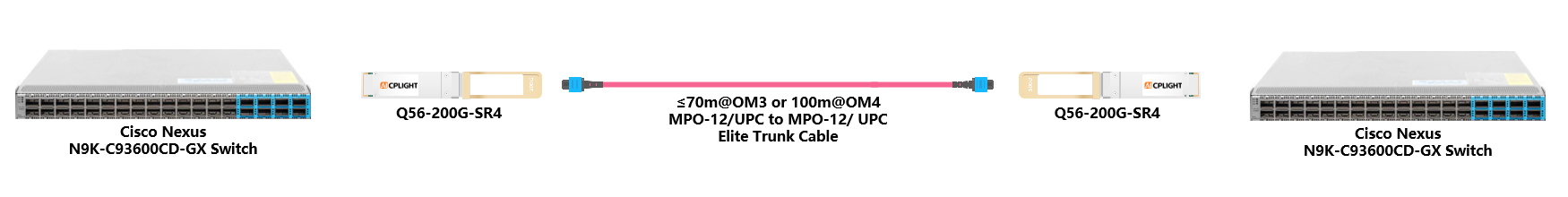

200G Ethernet, Data centers Interconnect, High performance computing
Certification
