The SFP-25G-LR SFP28 transceiver provides 25GBase-LR throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. The SFP28 transceiver works on the same 10G network cabling Infrastructure, boosting speed by at least 2.5 times. It also features DDM/DOM for real-time monitoring of operating status. This hot-swappable transceiver is pre-programmed, uniquely serialized, and tested for data traffic and application performance. Besides, it offers interoperability, laying a foundation for the next-generation network upgrade. Each SFP28 transceiver module is individually tested in targeted switch, it is fully compliant with the SFP28 MSA, CPRI and eCPRI standard. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center.
Specifications
Form Factor
SFP28
Data Rate
25.78125Gbps
Media
SMF
Wavelength
1310nm
Connector
Duplex LC UPC
Distance
10km
Transmitter Type
DFB
Receiver Type
PIN
Electrical Modulation
1x 25.78125G NRZ
Optical Modulation
1x 25.78125G NRZ
Power Consumption
≤1.2W
Case Operating Temperature
0 to 70°C (32 to 158°F)
Protocol
25 Gigabit Ethernet
16G Fiber Channel
Application
Swicth to Switch
Switch to NIC
Router to NIC
Other Optical Links
Certification
Connectivity Solutions

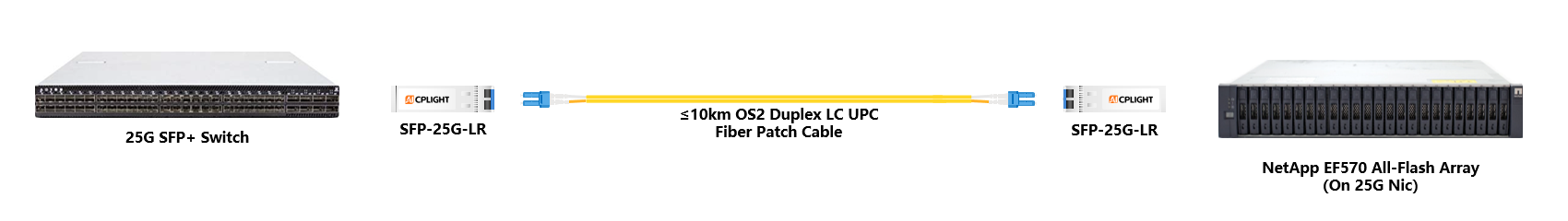

NetApp Server to Switch links:25G SFP28 to 25G SFP28
