NVIDIA/Mellanox MMA1Z00-NS400 Compatible 400GBASE-SR4 QSFP112 PAM4 850nm 50m DOM MPO-12/APC MMF Ethernet Optical Transceiver Module

P/N: Q112-400G-SR4

$339.00

Solds

Reviews

Questions

4-Year Warranty

30-Day Returns

30-Day Exchange

（1 In Stock）

Product Highlights

Built-in Broadcom 7nm Chip, Max. Power Consumption 9W

Tested in Targeted Switches for Superior Performance, Quality, and Reliability

Compliant with QSFP112 MSA CMIS Rev4.0

Hot-pluggable QSFP112 Form Factor

High-speed Electrical Compliant to IEEE 802.3db

4x 106.25G PAM4 Retimed 400GAUI-4 Electrical Interface

Interoperable with other IEEE-compliant 400GBASE interfaces where applicable

Class 1 Laser Safety

Specifications

Certification

Connectivity Solutions

Comparison Table

Q&A

Reviews

Resources

NVIDIA/Mellanox MMA1Z00-NS400 Compatible 400GBASE-SR4 QSFP112 PAM4 850nm 50m DOM MPO-12/APC MMF Ethernet Optical Transceiver Module

The 400GBASE-SR4 module, MTP/MPO-12 connector, up to 50m over parallel OM4 multi-mode fiber. It is compliant with QSFP112 MSA, CMIS 4.0 Interface and 400GAUI-4 standards.
The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 400G ethernet and data center interconnect applications.

Specifications

Form Factor

QSFP112

Data Rate

425Gbps

Media

MMF

Wavelength

850nm

Connector

MTP/MPO-12 APC

Distance

30m@OM3 50m@OM4

Transmitter Type

VCSEL

Receiver Type

Electrical Modulation

4x 106.25 PAM4

Optical Modulation

4x 106.25 PAM4

Power Consumption

≤9.0W

Case Operating Temperature

0 to 70°C (32 to 158°F)

Protocol

400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200

Application

Swicth to Switch Switch to NIC Other Optical Links

Certification

Connectivity Solutions

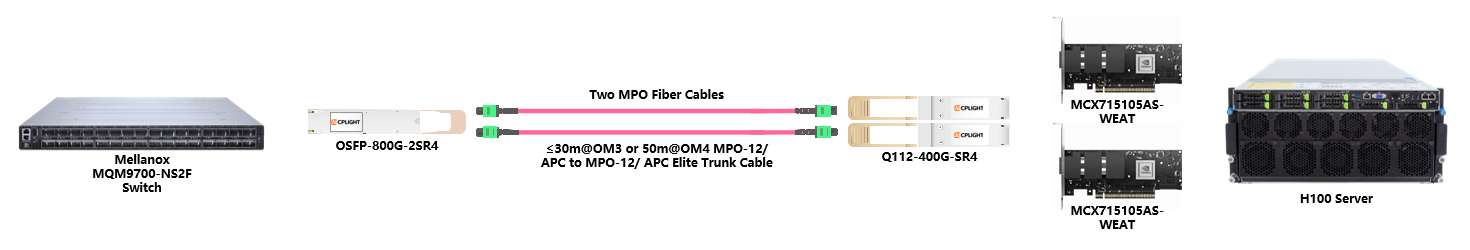

NVIDIA 400G Infniband links：800G OSFP to 2x400G QSFP112

All

Comparison Table

	OSFP-400G-SR4	OSFP-400G-DR4	Q112-400G-DR4	Q112-400G-SR4
Form Factor	OSFP(Flat Top)	OSFP(Flat Top)	QSFP112	QSFP112
Data Rate	425Gbps	425Gbps	425Gbps	425Gbps
Media	MMF	SMF	SMF	MMF
Wavelength	850nm	1310nm	1310nm	850nm
Connector	MTP/MPO-12 APC	MTP/MPO-12 APC	MTP/MPO-12 APC	MTP/MPO-12 APC
Distance	30m@OM3 50m@OM4	500m	500m	30m@OM3 50m@OM4
Transmitter Type	VCSEL	SMF	EML	VCSEL
Receiver Type	PIN	PIN	PIN	PIN
Electrical Modulation	4x 106.25 PAM4	4x 106.25 PAM4	4x 106.25 PAM4	4x 106.25 PAM4
Optical Modulation	4x 106.25 PAM4	4x 106.25 PAM4	4x 106.25 PAM4	4x 106.25 PAM4
Power Consumption	≤8.5W	≤9.0W	≤10.0W	≤9.0W
Case Operating Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Protocol	400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200	400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200	400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200	400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200
Application	NIC to Switch NIC to NIC Other Optical Links	NIC to Switch NIC to NIC Other Optical Links	Swicth to Switch Switch to NIC Other Optical Links	Swicth to Switch Switch to NIC Other Optical Links

Form Factor

Data Rate

Media

Wavelength

Connector

Distance

Transmitter Type

Receiver Type

Electrical Modulation

Optical Modulation

Power Consumption

Case Operating Temperature

Protocol

Application

NVIDIA Compatible 400GBASE-SR4 OSFP 850nm 100m DOM MTP/MPO-12 APC MMF Transceiver Module

OSFP(Flat Top)

QSFP112

425Gbps

MMF

SMF

MMF

850nm

1310nm

850nm

MTP/MPO-12 APC

30m@OM3 50m@OM4

500m

30m@OM3 50m@OM4

VCSEL

SMF

EML

VCSEL

4x 106.25 PAM4

≤8.5W

≤9.0W

≤10.0W

≤9.0W

0 to 70°C (32 to 158°F)

400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200

NIC to Switch NIC to NIC Other Optical Links

Swicth to Switch Switch to NIC Other Optical Links
