NVIDIA/Mellanox MMA4Z00-NS400 Compatible 400GBASE-SR4 OSFP Flat Top PAM4 850nm 100m DOM MTP/MPO-12/APC MMF Ethernet Optical Transceiver Module
NVIDIA/Mellanox MMA4Z00-NS400 Compatible 400GBASE-SR4 OSFP Flat Top PAM4 850nm 100m DOM MTP/MPO-12/APC MMF Ethernet Optical Transceiver Module
NVIDIA/Mellanox MMA4Z00-NS400 Compatible 400GBASE-SR4 OSFP Flat Top PAM4 850nm 100m DOM MTP/MPO-12/APC MMF Ethernet Optical Transceiver Module
P/N: OSFP-400G-SR4
$329.00
3
Solds
12
Reviews
10
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1 In Stock）

Product Highlights

Qualified for Ethernet End-to-End Systems
Built-in 7nm DSP, Max. Power Consumption 8.5W
Flat-top OSFP for ConnectX-7 Adapter
Support 800G-to-Two 400G Links for Switch-to-Adapter
4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel
Compliant with OSFP MSA, IEEE 802.3ck and Class 1 Laser Safety, with DDM Support
Low Bit Error Rate (BER) with NVIDIA systems
See more
Specifications
Certification
Connectivity Solutions
Comparison Table
Q&A
Reviews
Resources
NVIDIA/Mellanox MMA4Z00-NS400 Compatible 400GBASE-SR4 OSFP Flat Top PAM4 850nm 100m DOM MTP/MPO-12/APC MMF Ethernet Optical Transceiver Module
The 400GBASE-SR4 OSFP transceiver is designed to support high-speed data transmission over multimode fiber (MMF) with a maximum link length of up to 100 meters. Utilizing an MTP/MPO-12 connector, this transceiver ensures high bandwidth and efficient signal transmission for 400 Gigabit Ethernet applications. Compliant with the OSFP MSA, IEEE 802.3bs protocol, and 400GAUI-4 standards, the 400GBASE-SR8 provides a reliable, scalable solution for modern data centers, cloud networks, and 400G Ethernet deployments. The transceiver operates by carrying the 400 Gigabit Ethernet signal across eight individual wavelengths, with the multiplexing and demultiplexing of these wavelengths managed within the device. This technology enables optimized bandwidth utilization and supports high-performance, long-distance communication across multimode fiber. Ideal for demanding environments such as data centers and cloud infrastructures, the 400GBASE-SR4 OSFP transceiver is a robust and efficient solution for next-generation networking and high-capacity data transport.
Specifications
Form Factor
OSFP(Flat Top)
Data Rate
425Gbps
Media
MMF
Wavelength
850nm
Connector
MTP/MPO-12 APC
Distance
30m@OM3 50m@OM4
Transmitter Type
VCSEL
Receiver Type
PIN
Electrical Modulation
4x 106.25 PAM4
Optical Modulation
4x 106.25 PAM4
Power Consumption
≤8.5W
Case Operating Temperature
0 to 70°C (32 to 158°F)
Protocol
400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200
Application
NIC to Switch NIC to NIC Other Optical Links
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Connectivity Solutions

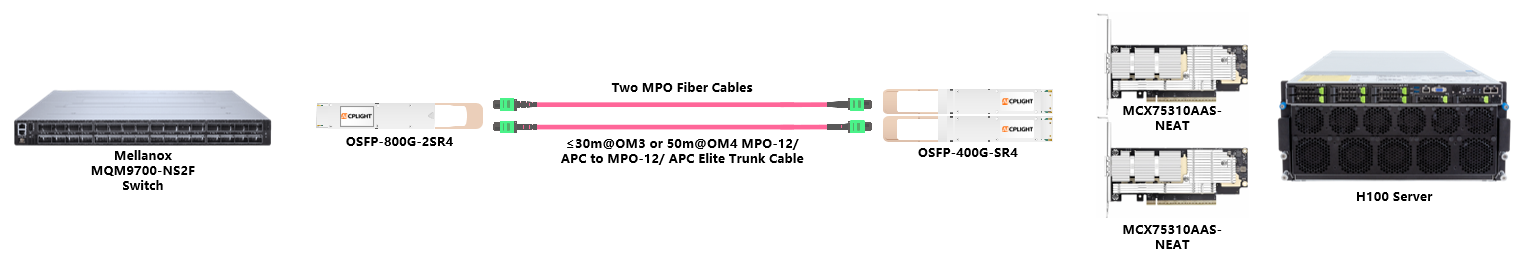

NVIDIA 400G Infiniband links：800G OSFP to 2x400G OSFP
NVIDIA NIC links：400G OSFP to 400G OSFP
All
NVIDIA 400G Infiniband links：800G OSFP to 2x400G OSFP
Comparison Table
NVIDIA Compatible 400GBASE-SR4 OSFP 850nm 100m DOM MTP/MPO-12 APC MMF Transceiver Module
OSFP-400G-SR4
NVIDIA/Mellanox MMS4X00-NS400 Compatible 400GBASE-DR4 OSFP Flat Top PAM4 1310nm 500m DOM MPO-12/APC SMF Ethernet Optical Transceiver Module
OSFP-400G-DR4
NVIDIA/Mellanox Compatible 400G QSFP112 DR4 500m 1310nm MPO-12/APC Transceiver Module
Q112-400G-DR4
NVIDIA/Mellanox Compatible 400G QSFP112 SR4 50m 850nm MPO-12/APC Transceiver Module
Q112-400G-SR4
Form Factor OSFP(Flat Top)OSFP(Flat Top)QSFP112QSFP112
Data Rate 425Gbps425Gbps425Gbps425Gbps
Media MMFSMFSMFMMF
Wavelength 850nm1310nm1310nm850nm
Connector MTP/MPO-12 APCMTP/MPO-12 APCMTP/MPO-12 APCMTP/MPO-12 APC
Distance 30m@OM3 50m@OM4500m500m30m@OM3 50m@OM4
Transmitter Type VCSELSMFEMLVCSEL
Receiver Type PINPINPINPIN
Electrical Modulation 4x 106.25 PAM44x 106.25 PAM44x 106.25 PAM44x 106.25 PAM4
Optical Modulation 4x 106.25 PAM44x 106.25 PAM44x 106.25 PAM44x 106.25 PAM4
Power Consumption ≤8.5W≤9.0W≤10.0W≤9.0W
Case Operating Temperature 0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)
Protocol 400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200
Application NIC to Switch NIC to NIC Other Optical LinksNIC to Switch NIC to NIC Other Optical LinksSwicth to Switch Switch to NIC Other Optical LinksSwicth to Switch Switch to NIC Other Optical Links
Form Factor
Data Rate
Media
Wavelength
Connector
Distance
Transmitter Type
Receiver Type
Electrical Modulation
Optical Modulation
Power Consumption
Case Operating Temperature
Protocol
Application
NVIDIA Compatible 400GBASE-SR4 OSFP 850nm 100m DOM MTP/MPO-12 APC MMF Transceiver Module
OSFP-400G-SR4
NVIDIA/Mellanox MMS4X00-NS400 Compatible 400GBASE-DR4 OSFP Flat Top PAM4 1310nm 500m DOM MPO-12/APC SMF Ethernet Optical Transceiver Module
OSFP-400G-DR4
NVIDIA/Mellanox Compatible 400G QSFP112 DR4 500m 1310nm MPO-12/APC Transceiver Module
Q112-400G-DR4
NVIDIA/Mellanox Compatible 400G QSFP112 SR4 50m 850nm MPO-12/APC Transceiver Module
Q112-400G-SR4
OSFP(Flat Top)
OSFP(Flat Top)
QSFP112
QSFP112
425Gbps
425Gbps
425Gbps
425Gbps
MMF
SMF
SMF
MMF
850nm
1310nm
1310nm
850nm
MTP/MPO-12 APC
MTP/MPO-12 APC
MTP/MPO-12 APC
MTP/MPO-12 APC
30m@OM3 50m@OM4
500m
500m
30m@OM3 50m@OM4
VCSEL
SMF
EML
VCSEL
PIN
PIN
PIN
PIN
4x 106.25 PAM4
4x 106.25 PAM4
4x 106.25 PAM4
4x 106.25 PAM4
4x 106.25 PAM4
4x 106.25 PAM4
4x 106.25 PAM4
4x 106.25 PAM4
≤8.5W
≤9.0W
≤10.0W
≤9.0W
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200
400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200
400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200
400 Gigabit Ethernet 400G RoCE 400G Infiniband NDR 200G Infiniband NDR200
NIC to Switch NIC to NIC Other Optical Links
NIC to Switch NIC to NIC Other Optical Links
Swicth to Switch Switch to NIC Other Optical Links
Swicth to Switch Switch to NIC Other Optical Links
